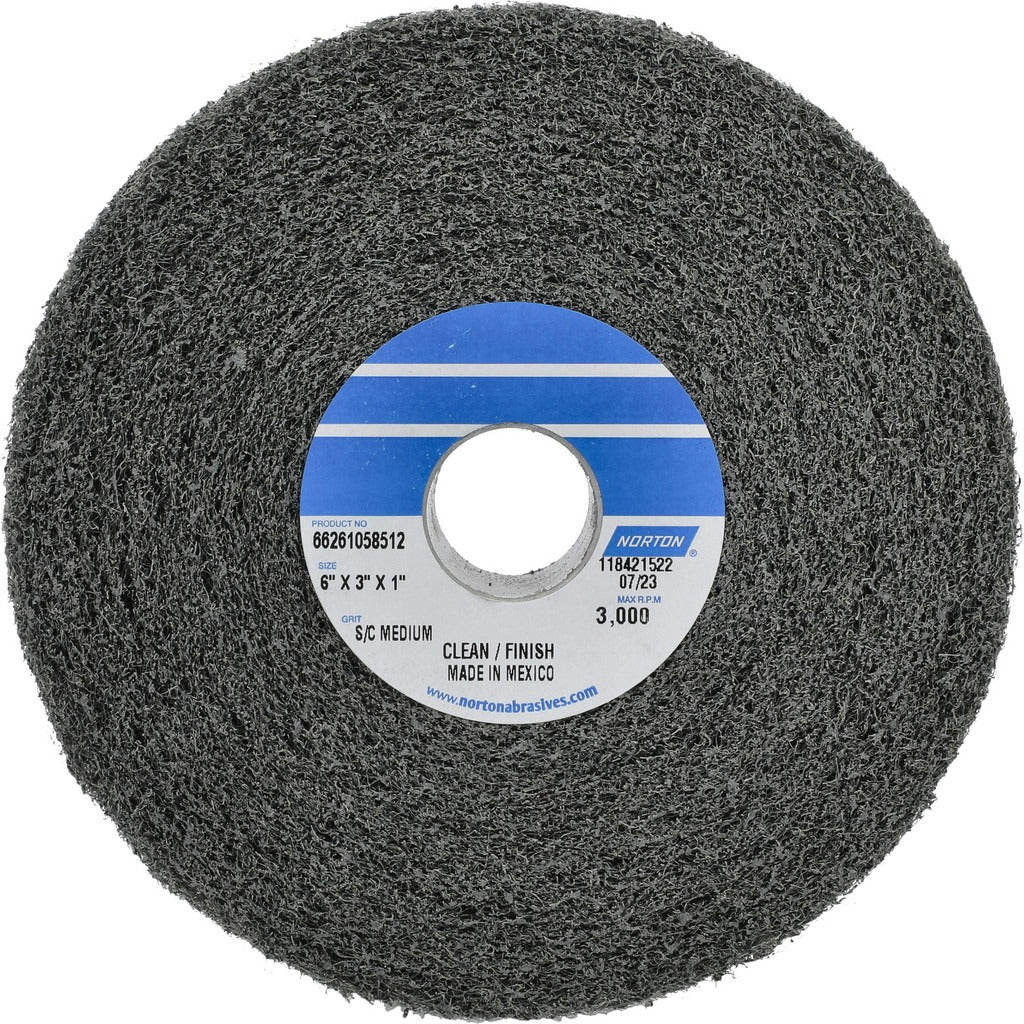

Norton 66261058512 Deburring Wheel 6 in Silicon Carbide

Product Description

The NORTON 66261058512 is a convolute deburring wheel designed for edge conditioning, light deburring, and surface blending on metal workpieces. Built with silicon carbide abrasive at a medium grade and density 4, this wheel delivers consistent, controlled material removal without aggressive stock loss. At 6 inches in diameter with a 3-inch face width and a 1-inch center hole, it mounts directly to standard bench and pedestal grinders. The 3,000 RPM maximum speed rating makes it suitable for steady production use in fabrication, maintenance, and metalworking environments. Machinists, tool and die workers, and maintenance technicians are the primary installers and operators.

This deburring wheel is used in shop settings where burrs, sharp edges, and surface scale must be removed from metal parts after cutting, stamping, or machining. The convolute construction layers abrasive material into a dense, uniform mass that conforms lightly to part geometry, making it well suited for flat and lightly contoured surfaces. Typical applications include deburring steel, stainless, aluminum, and similar metals on bench or pedestal grinder setups in both job shop and production environments.

Key Features

• Silicon carbide abrasive for effective deburring of ferrous and non-ferrous metals
• Medium grade with density 4 for controlled, consistent material removal
• Convolute wheel construction provides uniform abrasive distribution throughout the wheel life
• 6-inch diameter and 3-inch face width for broad surface coverage per pass
• 1-inch center hole fits standard bench and pedestal grinder arbors
• 3,000 RPM maximum operating speed

Compatibility

Compatible with bench grinders and pedestal grinders accepting a 1-inch arbor hole and operating at or below 3,000 RPM.

Installation Notes

Installation is performed by qualified shop personnel following the grinder manufacturer's wheel-mounting procedures. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and never exceed the rated maximum RPM. Always use the appropriate work rest and wheel guard per ANSI B11.9 or the grinder manufacturer's requirements.
