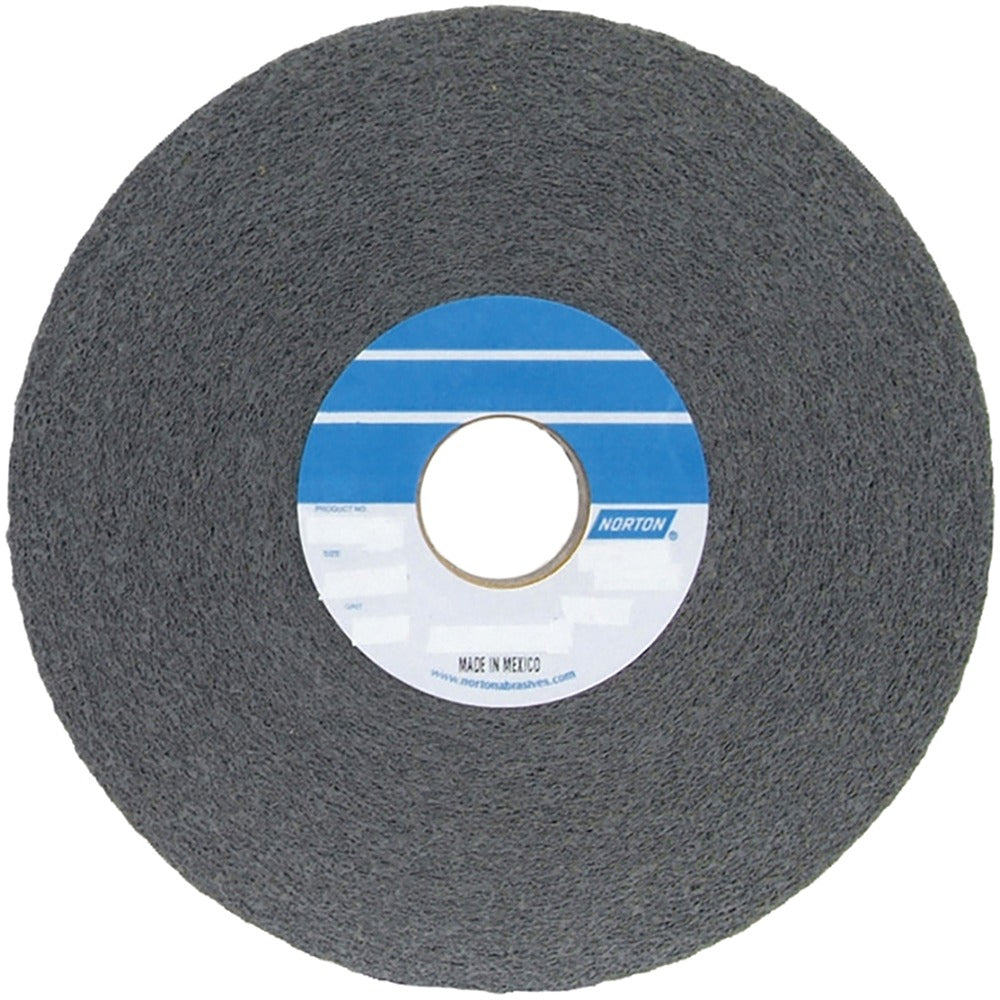

Norton 66261055270 Deburring Wheel 14 in Silicon Carbide

Product Description

The NORTON 66261055270 is a convolute deburring wheel designed for edge finishing, burr removal, and surface blending on metal workpieces. Built with silicon carbide abrasive at a density of 8 and a hard grade, this wheel delivers consistent, controlled cut action on harder materials. It measures 14 inches in diameter with a 2-inch face width and an 8-inch center hole, and it is rated to a maximum of 2,000 RPM. Machinists, tool-and-die technicians, and fabricators use convolute wheels like this one when a uniform finish across part edges and surfaces is required.

This wheel is suited for bench grinder and pedestal grinder applications in machine shops, metal fabrication facilities, and manufacturing environments. It handles deburring and finishing tasks on ferrous and non-ferrous metals where silicon carbide abrasive provides an effective cutting action. The convolute construction maintains a consistent density and cut rate throughout the wheel life, making it appropriate for production runs as well as job-shop use.

Key Features

• Silicon carbide abrasive material for effective cutting on hard metals
• Convolute wheel construction delivers consistent density and finish throughout wheel life
• Density 8 hard grade for controlled stock removal and edge finishing
• 14-inch diameter with 2-inch face width for broad contact on bench and pedestal grinders
• 8-inch center hole for direct mounting on standard grinder arbors
• Rated to 2,000 RPM maximum for compatibility with standard bench and pedestal grinder speeds

Compatibility

Designed for use with bench grinders and pedestal grinders accepting a 14-inch diameter wheel with an 8-inch center hole arbor.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician. Always power down and lock out the grinder before mounting or removing the wheel. Verify that the grinder spindle speed does not exceed the 2,000 RPM maximum rating marked on the wheel before startup. Inspect the wheel for visible damage before each use and follow ANSI B7.1 safe wheel-handling guidelines.
