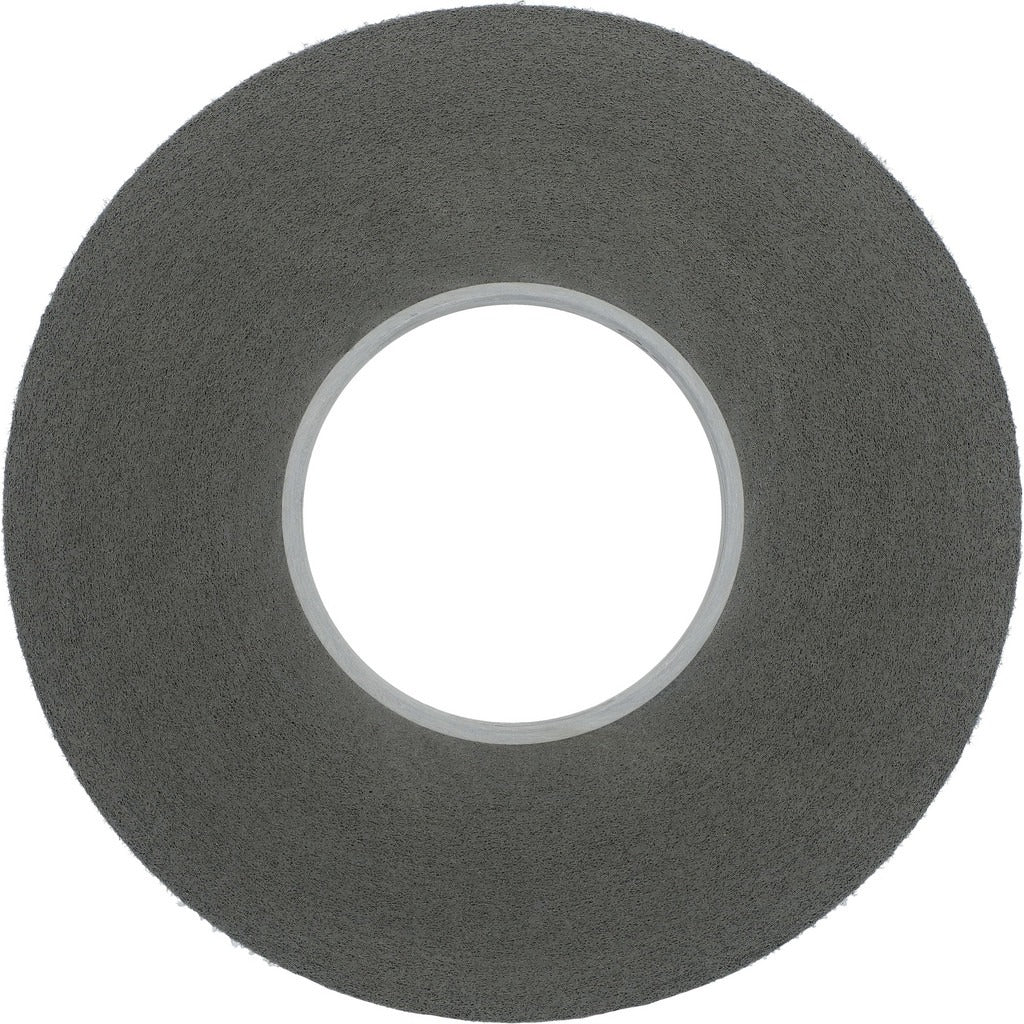

Norton 66261055262 Deburring Wheel 12 Inch Silicon Carbide

Product Description

The NORTON 66261055262 is a convolute deburring wheel designed for edge finishing, deburring, and surface conditioning on metal workpieces. Built with silicon carbide abrasive at a fine grade and density 8 hard configuration, this wheel delivers consistent stock removal on ferrous and non-ferrous metals. It measures 12 inches in diameter with a 1-inch face width and a 5-inch center hole, and it is rated for a maximum operating speed of 2,500 RPM. Machinists, tool-and-die technicians, and fabrication shop personnel use this wheel for controlled deburring where a repeatable finish is required.

This convolute wheel is suited for bench grinder and pedestal grinder applications in metalworking shops, manufacturing facilities, and maintenance environments. The convolute construction integrates abrasive throughout the wheel body, providing a consistent cut as the wheel wears down. It handles edge breaking, light flash removal, and pre-finishing operations on cast, machined, or stamped metal parts. The silicon carbide grain is well-matched to harder non-ferrous metals such as aluminum, brass, and titanium, as well as cast iron and carbide tooling.

Key Features

• Silicon carbide abrasive for aggressive cutting on non-ferrous metals and cast iron
• Fine grade, density 8 hard rating for consistent material removal and edge finishing
• Convolute construction ensures uniform abrasive distribution as the wheel wears
• 12-inch diameter with 1-inch face width suits standard bench and pedestal grinder arbors
• 5-inch center hole for secure mounting on compatible spindle configurations
• 2,500 RPM maximum operating speed rating

Compatibility

Designed for use on bench grinders and pedestal grinders accepting a 12-inch diameter wheel with a 5-inch center hole and 1-inch face width at speeds not exceeding 2,500 RPM.

Installation Notes

This wheel should be installed by a qualified operator following all machine guarding requirements and ANSI B7.1 safe practices for abrasive wheel use. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before every use and never operate above the rated maximum speed. Ensure the correct flange size and proper spindle fit before running the wheel.
