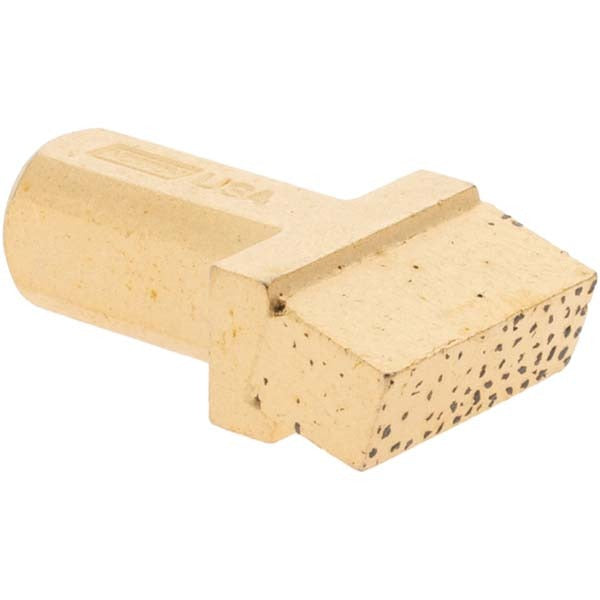

Norton 66260195374 Diamond Dresser Grit Impregnated

Product Description

The NORTON 66260195374 is a grit impregnated diamond dresser designed for dressing and truing grinding wheels in precision machining and metalworking applications. The tool features a multi-point diamond configuration embedded in a grit impregnated head, which distributes wear evenly across the contact surface and extends service life compared to single-point designs. The shank measures 7/16 inches in diameter and 3/4 inches in length, with a head diameter of 1/4 inches and a head length of 3/4 inches. Head thickness is 5/16 inches. This dresser is typically installed and used by machinists, tool and die makers, and grinding machine operators maintaining abrasive wheel geometry.

This diamond dresser is suited for use on surface grinders, cylindrical grinders, and bench grinders where consistent wheel face conditioning is required. The compact head diameter makes it appropriate for dressing wheels in tight clearance setups. The grit impregnated multi-point design performs well on vitrified and resinoid bonded wheels commonly found in general-purpose and precision grinding operations across job shops and production environments.

Key Features

• Grit impregnated multi-point diamond construction for even wear distribution
• 7/16 inch shank diameter for secure mounting in standard dresser holders
• 3/4 inch shank length provides stable tool engagement
• 1/4 inch head diameter suited for close-clearance dressing applications
• 5/16 inch head thickness supports consistent contact with the grinding wheel face

Compatibility

Designed as an OEM-style replacement or direct-use diamond dresser for standard grinding machine dresser holders accepting a 7/16 inch shank diameter.

Installation Notes

Diamond dressers are installed and used by qualified machinists or grinding machine operators. Power down and lock out the grinding machine before mounting or removing the dresser from its holder. Secure the shank firmly in the dresser holder before engaging the wheel, and always dress at the recommended traverse rate for the wheel specification being conditioned. Eye protection and machine guarding must be in place before operating the grinder.
