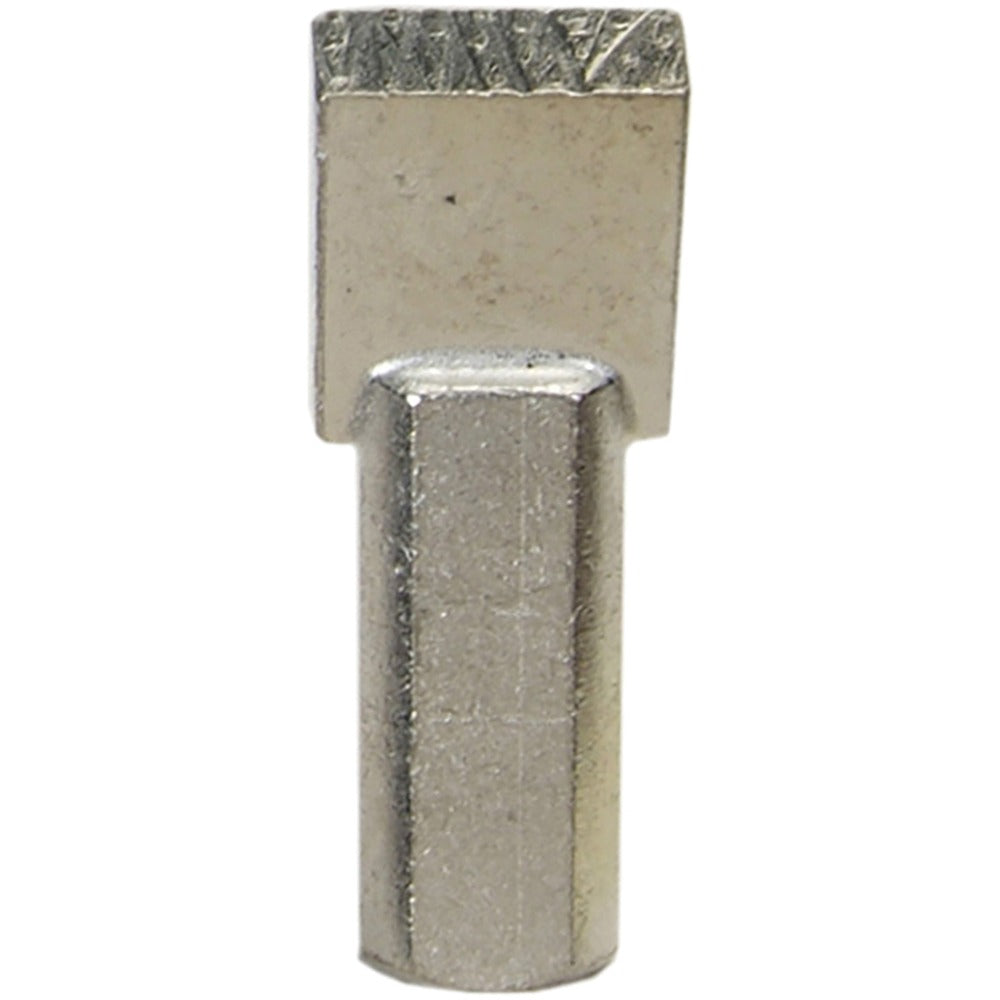

Norton 66260195372 Diamond Dresser 3/4 Carat Single Point

Product Description

The NORTON 66260195372 is a single-point diamond dresser designed for truing and dressing abrasive grinding wheels. It uses a natural diamond stone secured in a steel shank to restore a grinding wheel's profile, remove glazing, and expose fresh abrasive grain. The dresser features a 3/4-carat diamond and a 7/16-inch shank diameter with a 2-inch shank length, making it compatible with standard toolpost and magnetic-base holders found on surface, cylindrical, and bench grinders. Licensed machinists, tool and die makers, and grinding machine operators are the primary users of this type of tooling.

Single-point diamond dressers are used across metalworking, aerospace, automotive, and precision machining shops wherever grinding wheel condition directly affects dimensional tolerance and surface finish. This dresser is suited for both production and maintenance dressing on aluminum oxide and silicon carbide wheels. The 7/16-inch shank fits a wide range of standard dresser holders commonly mounted on manual and CNC grinding equipment. The resettable diamond means the stone can be rotated to a fresh cutting face as the tip wears, extending service life without replacing the full tool.

Key Features

• Single-point configuration for precise, controlled wheel truing and dressing
• 3/4-carat natural diamond provides durable cutting performance on standard abrasive wheels
• Resettable stone allows rotation to a fresh cutting face to extend tool life
• 7/16-inch shank diameter fits commonly available dresser holders and toolpost mounts
• 2-inch shank length provides adequate reach for most bench and surface grinder setups

Compatibility

Designed as an OEM-style single-point diamond dresser for use with standard dresser holders accepting a 7/16-inch shank diameter on surface grinders, cylindrical grinders, and bench grinders.

Installation Notes

Diamond dressers are installed and serviced by machinists or grinding machine operators following standard shop safety procedures. Power down and lock out the grinding machine before mounting or adjusting the dresser in its holder. Secure the shank firmly in the holder to prevent chatter or movement during the dressing pass. Always wear eye protection when operating a grinding wheel, and follow the wheel manufacturer's guidelines for dressing angle and infeed rate.
