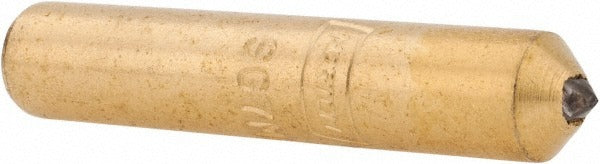

Norton 66260195371 Diamond Dresser 3/4 Carat Single Point

Product Description

The NORTON 66260195371 is a single-point diamond dresser designed for truing and dressing grinding wheels in precision machining and abrasive tool maintenance applications. It uses a 3/4-carat natural diamond mounted at a single point to remove high spots, restore wheel profile, and open wheel face for consistent cut. The shank measures 3/8 inch in diameter and 2 inches in length, fitting standard tool post and hand-held dresser holders commonly found in surface grinder and cylindrical grinder setups. The diamond is resettable, extending service life beyond initial wear. Machinists, tool grinders, and grinding equipment technicians are the primary users of this tool.

This dresser is suited for use on conventional abrasive grinding wheels in both production and maintenance environments. It is appropriate for bench grinders, surface grinders, OD grinders, and tool and cutter grinders where wheel face condition directly affects workpiece finish and dimensional accuracy. The single-point configuration is well suited for straight-profile dressing passes. The resettable diamond makes this a practical option for shops that service their own wheels regularly rather than replacing dressers at first sign of wear.

Key Features

• 3/4-carat single-point diamond for consistent, repeatable wheel truing
• Resettable diamond extends usable tool life
• 3/8-inch shank diameter fits standard dresser holders and tool posts
• 2-inch shank length provides adequate reach in most grinder setups
• Single-stone construction simplifies dressing angle control

Compatibility

Designed as a standard single-point diamond dresser for use with conventional abrasive grinding wheels requiring a 3/8-inch shank holder. No specific machine model compatibility was provided in the product data.

Installation Notes

Diamond dressers are installed and used by machinists and grinding equipment technicians. Before mounting or adjusting the dresser, power down and lock out the grinding machine per OSHA lockout/tagout procedures. Secure the shank firmly in the dresser holder to prevent chatter or movement during the dressing pass. Do not present the diamond to the wheel at an angle that concentrates load directly on the tip without the recommended 10-15 degree heel clearance typical for single-point dressers — consult the machine manufacturer guidelines for proper approach angle.
