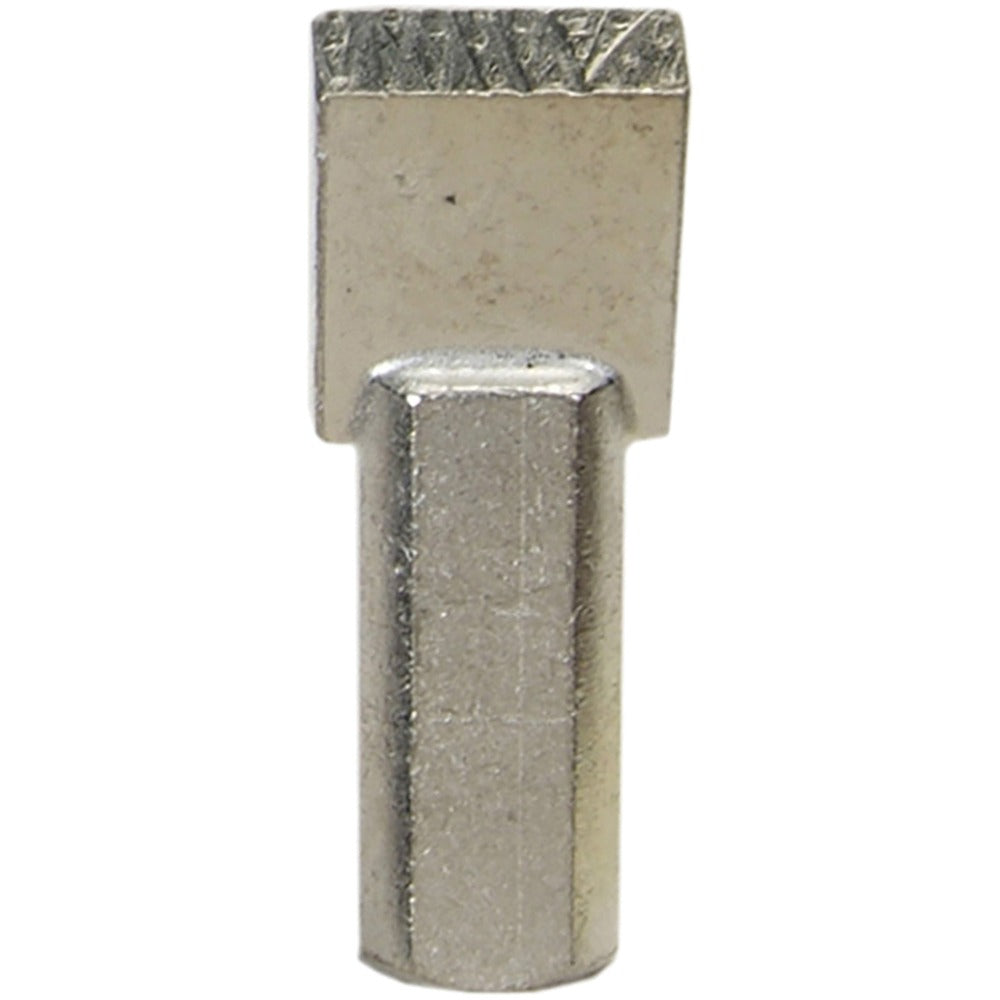

Norton 66260195367 Single Point Diamond Dresser 1/3 Carat

Product Description

The NORTON 66260195367 is a single point diamond dresser used to true and dress abrasive grinding wheels. It holds one natural diamond stone rated at 1/3 carat, mounted in a resettable setting so the stone can be repositioned as it wears. The 3/8-inch shank diameter and 2-inch shank length fit standard wheel dresser holders found in most grinding machine setups. Grinding wheel dressers are installed and operated by machinists, tool grinders, and maintenance technicians to restore wheel geometry, remove glaze, and expose fresh abrasive grain for consistent cut performance.

This dresser is suited for precision surface grinding, cylindrical grinding, and tool and cutter grinding applications where consistent wheel form is critical. It is used on both manual and CNC grinding machines in job shops, production machining environments, and maintenance shops. The resettable stone design extends service life by allowing the diamond to be rotated to a fresh cutting edge rather than replaced outright.

Key Features

• Single point configuration for precise, controlled wheel truing and dressing
• 1/3 carat natural diamond stone for durable abrasive contact
• Resettable stone mount allows repositioning to extend tool life
• 3/8-inch shank diameter fits common dresser holder tooling
• 2-inch shank length provides sufficient reach in standard holders

Compatibility

Designed as a standard single point diamond dresser for use with abrasive grinding wheel applications requiring a 3/8-inch shank diameter dresser holder.

Installation Notes

Single point diamond dressers are mounted by machinists or grinding machine operators into a dresser holder fixture secured to the machine table or base. Power and wheel rotation must be stopped before installing or removing the dresser from its holder. The diamond point should be angled slightly off-center relative to the wheel face, typically per machine manufacturer guidance, to prevent flat-spotting the stone. Inspect the stone seating and holder clamping hardware before each use.
