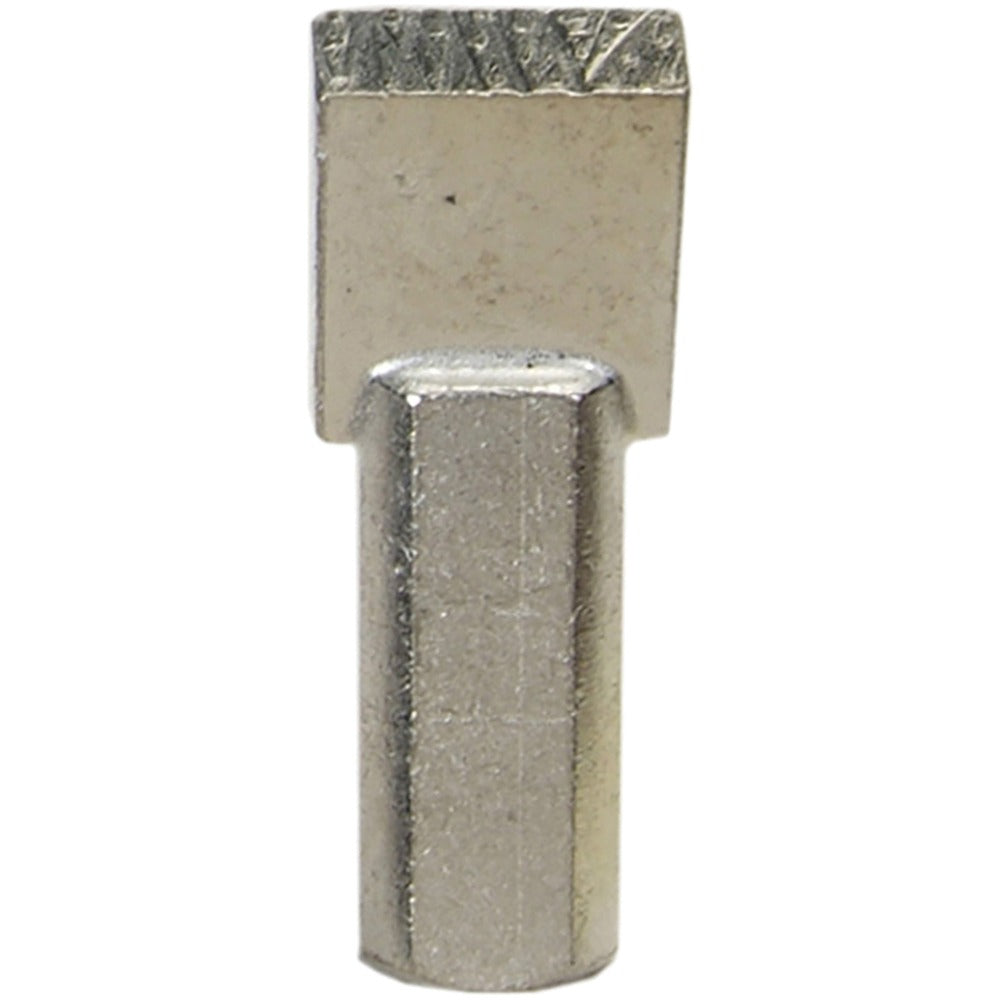

Norton 66260195366 Single Point Diamond Dresser 1/4 Carat

Product Description

The NORTON 66260195366 is a single-point diamond dresser designed to true and dress abrasive grinding wheels in industrial and shop environments. It uses one natural diamond stone rated at 1/4 carat to precisely reshape wheel profiles, remove glazing, and restore cutting action. The 7/16-inch shank diameter and 2-inch shank length allow secure mounting in standard dresser holders and tool posts. This type of dresser is a staple in machine shops, tool rooms, and grinding operations where consistent wheel geometry is critical to part accuracy.

Single-point diamond dressers like the 66260195366 are used on surface grinders, cylindrical grinders, and bench grinders in both production and maintenance settings. The resettable design allows the diamond to be repositioned in its shank when wear occurs on the current contact point, extending the usable service life of the tool. Typical users include machinists, toolroom operators, and maintenance technicians performing routine wheel conditioning.

Key Features

• Single-point configuration for precise, controlled wheel dressing
• 1/4 carat natural diamond stone for effective abrasive material removal
• Resettable diamond mount extends tool service life
• 7/16-inch shank diameter fits standard dresser holders and tool posts
• 2-inch shank length provides stable reach and rigid seating

Compatibility

Designed as an OEM-style single-point diamond dresser for use with standard grinding wheel dresser holders and tool-post mounts that accept a 7/16-inch shank diameter.

Installation Notes

Diamond dressers are typically installed by machinists or toolroom personnel. Power down and lock out the grinder before mounting or repositioning the dresser in the holder. The dresser should be held rigidly with minimal overhang to prevent chatter during dressing passes. Follow the machine manufacturer's recommended feed rate and dressing angle when truing the wheel.
