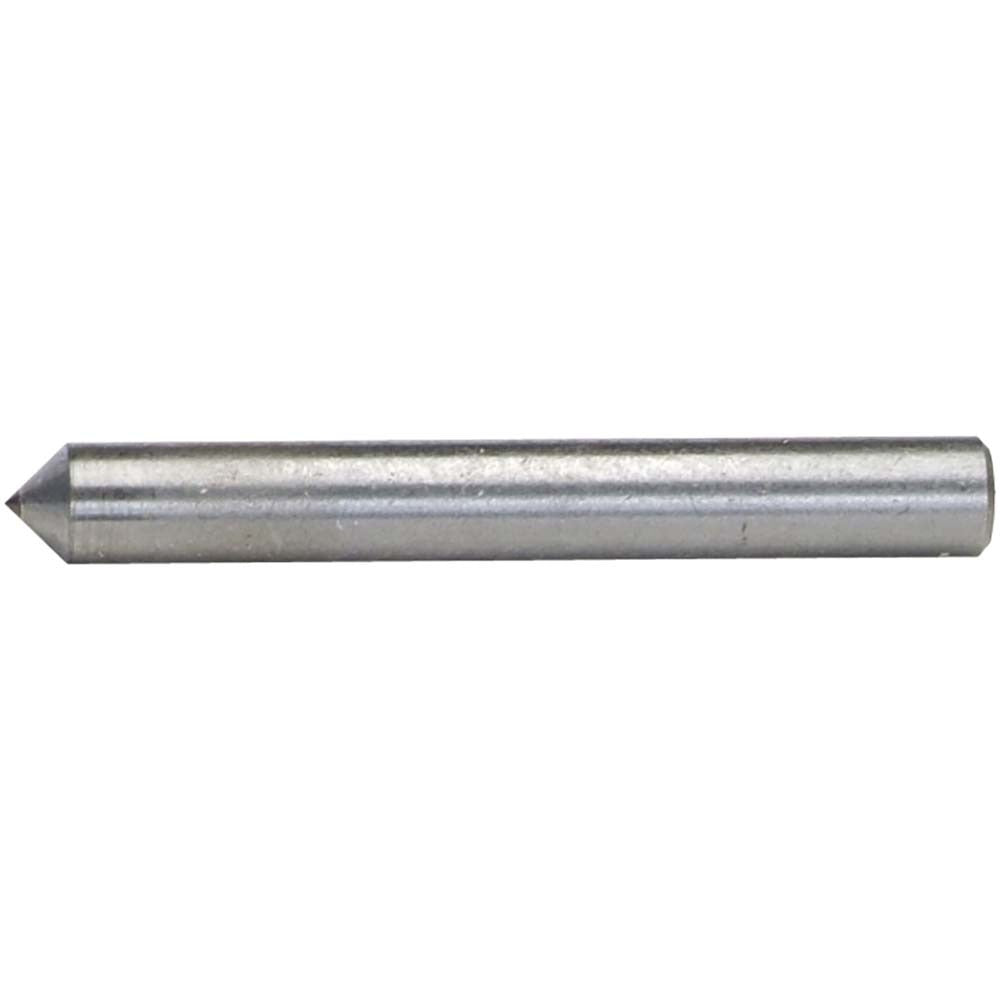

Norton 66260195231 Diamond Dresser Convex Radius Point

Product Description

The NORTON 66260195231 is a single-point diamond dresser designed for truing and dressing abrasive grinding wheels. It features a convex radius point geometry with a 90-degree included angle, making it well suited for producing consistent wheel profiles during dressing operations. The shank measures 1/8 inch in diameter and 1 inch in length, giving it a compact form factor for use in standard dresser holders. This tool is typically used by machining professionals and grinding technicians who require precise, repeatable wheel face conditioning in production or toolroom environments.

This diamond dresser is appropriate for use on conventional abrasive grinding wheels in surface, cylindrical, and toolroom grinding applications. The single-point convex radius configuration allows the operator to dress a defined radius or flat profile onto the wheel face. It is a non-resettable unit, meaning the diamond point is fixed and the tool is replaced rather than repositioned when wear occurs. Typical users include machinists, grinding technicians, and tool-and-die professionals working with precision grinding equipment.

Key Features

• Single-point diamond construction for precise wheel truing and dressing
• Convex radius point geometry with a 90-degree included angle
• Compact 1/8 inch shank diameter fits standard dresser holder bores
• 1 inch shank length for secure clamping in holder
• Non-resettable design — replace when diamond point shows wear

Compatibility

Designed for use as a single-point wheel dresser on conventional abrasive grinding wheels in standard dresser holders accepting a 1/8 inch shank diameter.

Installation Notes

A licensed machinist or qualified grinding technician should mount this dresser. Secure the shank firmly in the dresser holder before operating, ensuring the tool does not extend further than necessary from the holder. The grinding wheel spindle should be brought to operating speed before contacting the dresser, and wheel guards must be in place per applicable machine safety standards. Do not use this dresser on superabrasive CBN or diamond wheels.
