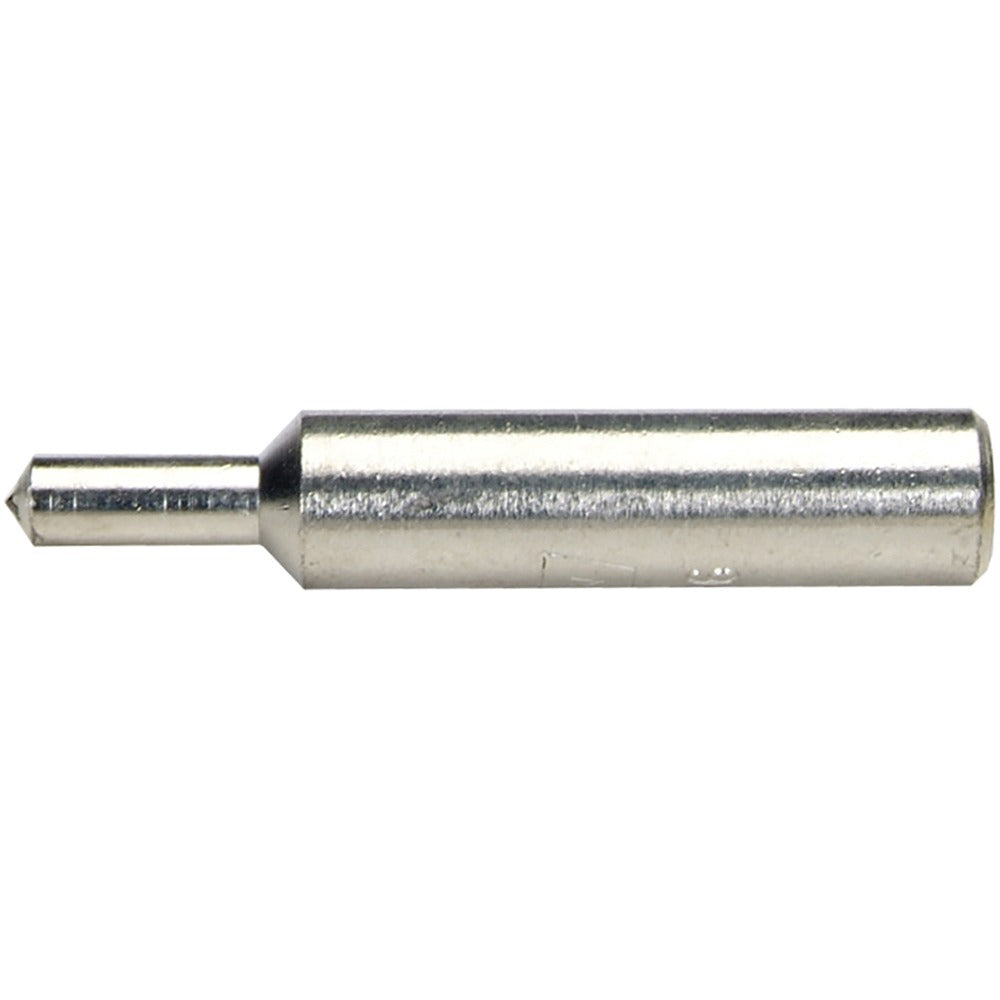

Norton 66260195214 Diamond Dresser Concave Radius

Product Description

The NORTON 66260195214 is a single-point diamond dresser designed for truing and dressing grinding wheels. It features a concave radius point geometry, which makes it well suited for dressing wheel profiles that require a curved surface finish. The shank measures 3/8 inch in diameter and 2 inches in length, providing a solid, stable mount in standard dresser holders. With a minimum radius of 0.063 inches and a maximum radius of 0.125 inches, this dresser handles a range of concave profile requirements. It is used by grinding machine operators and tool room machinists maintaining wheel geometry on surface, cylindrical, and tool grinders.

This diamond dresser is intended for use in precision grinding applications where wheel face condition directly affects part finish and dimensional accuracy. Typical install scenarios include production grinding cells and tool room environments where grinding wheels require frequent truing to maintain profile. The concave point style is especially applicable when dressing formed or radiused wheel faces. This is a single-use, non-resettable dresser.

Key Features

• Concave radius point geometry for dressing curved and profiled grinding wheel faces
• Single-point configuration for precise, controlled contact with the wheel
• 3/8 inch shank diameter fits standard dresser holder bores
• 2 inch shank length provides adequate reach and rigidity in the holder
• Minimum radius of 0.063 inches and maximum radius of 0.125 inches
• Non-resettable construction — replace when the diamond is worn

Compatibility

Designed as a replacement or standard single-point diamond dresser for use in any grinding machine dresser holder accepting a 3/8 inch shank diameter.

Installation Notes

Diamond dressers are installed and serviced by grinding machine operators or tool room technicians. Before mounting, power down and lock out the grinding machine per applicable OSHA lockout/tagout procedures. Secure the shank firmly in the dresser holder to the depth recommended by the machine manufacturer to prevent chatter or deflection during dressing. Do not exceed the feed rates or depth of cut specified for the grinding machine and wheel combination in use.
