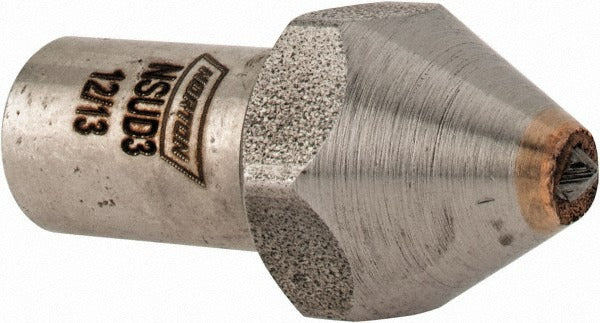

Norton 66260195162 Diamond Dresser 1/3 Carat Single Point

Product Description

The NORTON 66260195162 is a single-point diamond dresser used to true and dress abrasive grinding wheels. The diamond tip removes glazed or loaded abrasive material from the wheel face, restoring a sharp, accurate cutting profile. Rated at 1/3 carat, the single-point tip concentrates dressing force precisely where it is needed. The 7/16-inch shank diameter and 1-7/16-inch shank length fit standard dresser holders found on bench grinders, surface grinders, and cylindrical grinding machines. This tool is used by grinding machine operators, tool-and-die technicians, and maintenance machinists in production and job-shop environments.

This diamond dresser is suited for dressing aluminum oxide, silicon carbide, and conventional abrasive grinding wheels in both light manufacturing and precision grinding applications. The resettable diamond design allows the tip to be repositioned if wear occurs on the contact point, extending the service life of the dresser. Typical installations include surface grinder wheel maintenance, bench grinder reconditioning, and any application requiring consistent wheel geometry for close-tolerance work.

Key Features

• Single-point diamond tip for precise, controlled wheel dressing
• 1/3 carat diamond rated for conventional abrasive wheel truing
• Resettable diamond allows tip repositioning to extend service life
• 7/16-inch shank diameter fits standard dresser holders
• 5/8-inch head diameter provides a robust mounting body
• 1-7/16-inch shank length suits most surface and bench grinder setups

Compatibility

Designed as a replacement or service dresser for standard dresser holders accepting a 7/16-inch shank diameter, compatible with bench grinders, surface grinders, and cylindrical grinders using conventional abrasive wheels.

Installation Notes

Installation is performed by machinists or grinding machine operators. Power down and lock out the grinding machine before mounting or adjusting the dresser in the holder. Secure the shank firmly in the dresser holder to prevent chatter or movement during dressing. Present the diamond tip to the wheel face at the angle and feed rate recommended for the wheel specification being dressed — never force the tip into the wheel.
