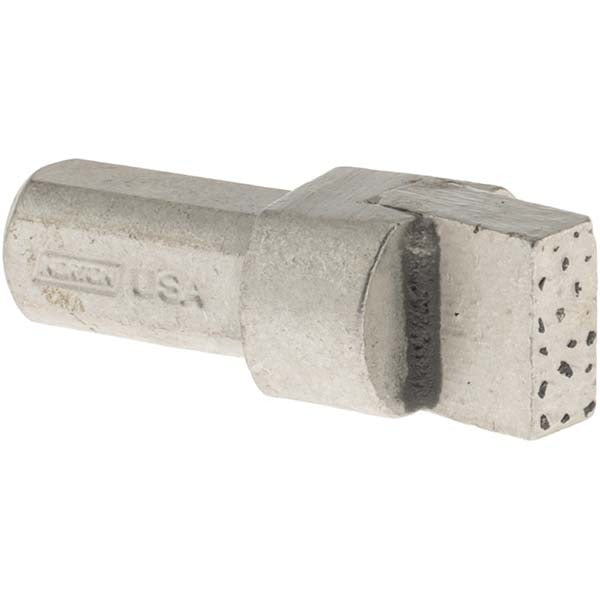

Norton 66260195049 Diamond Dresser 7/16 in Shank

Product Description

The NORTON 66260195049 is a multi-point diamond dresser designed to true and dress abrasive grinding wheels in precision grinding applications. The tool features a 7/16-inch shank diameter and a 2A-E shape profile, making it well-suited for restoring wheel geometry and surface condition during production or maintenance operations. With a head length of 1/2 inch and a head thickness of 3/8 inch, this dresser delivers consistent contact with the wheel face. At 0.03 pounds, it is a compact, lightweight tool suited for bench grinder and surface grinder setups. Grinding machine operators and tool room technicians are the primary users of this type of dressing tool.

This diamond dresser is intended for use in machine shops, tool rooms, and manufacturing environments where grinding wheel condition directly affects part finish and dimensional accuracy. It is appropriate for dressing vitrified and resin-bonded abrasive wheels on surface grinders, cylindrical grinders, and bench grinders. The multi-point configuration distributes wear across several diamond points, extending service life compared to single-point designs. It is a standard fit for routine wheel maintenance in both job shop and production grinding operations.

Key Features

• Multi-point diamond tip distributes wear across several contact points for extended dresser life
• 2A-E shape profile for consistent wheel face contact during dressing passes
• 7/16-inch shank diameter fits standard dresser holders and grinding machine tool posts
• Head length of 1/2 inch and head thickness of 3/8 inch provide controlled dressing geometry
• Lightweight at 0.03 pounds for easy handling and precise placement

Compatibility

Designed as an OEM-style replacement or standard-fit diamond dresser for grinding machine tool posts and dresser holders accepting a 7/16-inch shank diameter.

Installation Notes

Diamond dressers are installed and serviced by machine operators or tool room technicians familiar with grinding equipment. Before mounting or replacing the dresser, power down the grinding machine and confirm the spindle has come to a complete stop. Secure the dresser shank firmly in the holder to prevent chatter or movement during the dressing pass. Apply coolant as required by the grinding process and follow the machine manufacturer's recommended dressing feed rate and depth of cut guidelines.
