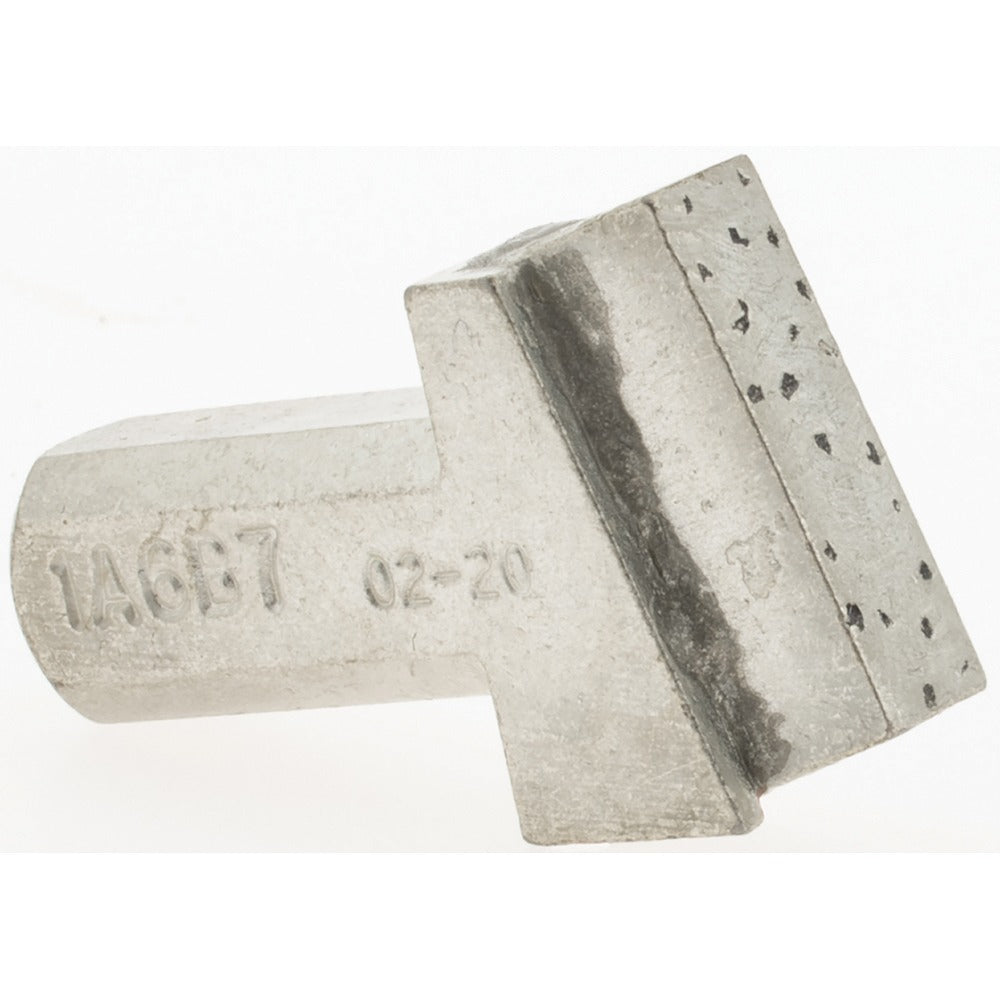

Norton 66260195035 Diamond Dresser 7/16 in Shank Multi-point

Product Description

The NORTON 66260195035 is a multi-point diamond dresser designed to true and dress grinding wheels in precision grinding applications. It features a 7/16 inch shank diameter, a 3/4 inch head length, and a 5/16 inch head thickness in a 1A-B shape profile. Diamond dressers like this one are used by machinists and grinding technicians to restore wheel geometry, improve surface finish, and remove glazing or loading from abrasive wheel faces. The multi-point configuration distributes wear across several diamond crystals, extending service life compared to single-point designs. At 0.08 pounds, the tool is compact and suited for use in bench or surface grinder setups.

This diamond dresser is used in metalworking shops and precision machining environments where grinding wheel condition directly affects workpiece tolerance and surface quality. It is appropriate for dressing conventional abrasive wheels on surface grinders, cylindrical grinders, and tool and cutter grinders. Typical users include tool room machinists, grinding machine operators, and maintenance technicians maintaining production grinding equipment. The 1A-B shape makes it suitable for truing flat wheel faces.

Key Features

• Multi-point diamond tip distributes wear for extended dresser life
• 7/16 inch shank diameter fits standard dresser tool holders
• 3/4 inch head length with 5/16 inch head thickness in 1A-B profile
• Lightweight at 0.08 pounds for easy handling and mounting
• Single-piece package quantity suitable for individual replacement or stocking

Compatibility

Designed as an OEM-style replacement or direct-fit diamond dresser for grinding machines accepting a 7/16 inch shank diameter dresser holder.

Installation Notes

Diamond dressers are installed by machinists or grinding technicians. Before mounting, isolate the grinding machine from power and ensure the wheel guard is in place. Secure the shank firmly in the dresser holder to the tool holder manufacturer's recommended clamping procedure. Always dress at the correct feed rate and depth of cut as specified for the wheel being trued — aggressive dressing passes can fracture diamond points.
