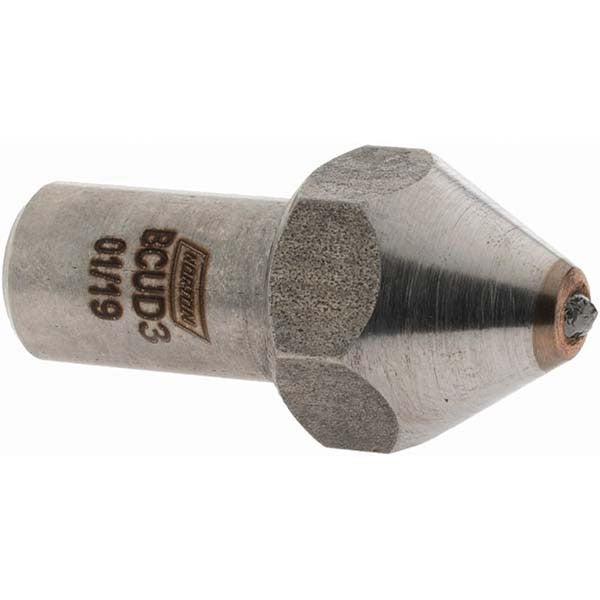

Norton 66260195024 Single Point Diamond Dresser 1/3 Carat

Product Description

The NORTON 66260195024 is a single point diamond dresser used to true and dress abrasive grinding wheels. It seats a natural or synthetic diamond tip at a fixed 60-degree included angle, allowing the technician to restore wheel geometry and surface condition with a controlled, repeatable cut. The shank measures 7/16 inches in diameter and 1-7/16 inches in length, fitting standard tool-post and radius dresser holders used in surface, cylindrical, and tool-and-cutter grinding operations. Diamond carat weight is 1/3, which is appropriate for medium-duty dressing on conventional abrasive wheels.

This dresser is suited for use in production and maintenance grinding environments where wheel face condition directly affects part finish and dimensional accuracy. Typical applications include dressing aluminum oxide and silicon carbide wheels on surface grinders, cylindrical grinders, and bench grinders. The fixed single-point design is commonly selected when consistent form dressing or flat-face dressing is required without the need for rotary or multi-point tooling. The 5/8-inch head diameter accommodates standard dresser block and holder configurations.

Key Features

• Single point tip with 60-degree included angle for controlled wheel contact
• 1/3 carat diamond size suited for medium-duty dressing tasks
• 7/16 inch shank diameter fits common dresser holders and tool posts
• 1-7/16 inch shank length provides adequate reach in standard setups
• 5/8 inch head diameter for compatibility with typical dresser block seats
• Non-resettable design — replace unit when tip is worn

Compatibility

Designed as an OEM-style single point diamond dresser for use with standard grinding machine dresser holders accepting a 7/16 inch shank diameter.

Installation Notes

Installation is performed by a machinist or grinding machine operator. Power down and lock out the grinding machine before mounting or removing the dresser. Secure the shank firmly in the dresser holder to prevent movement during contact with the wheel. The dresser should be presented to the wheel at the angle specified by the machine manufacturer, and depth of cut per pass should follow the wheel manufacturer's dressing guidelines to avoid overloading the diamond tip.
