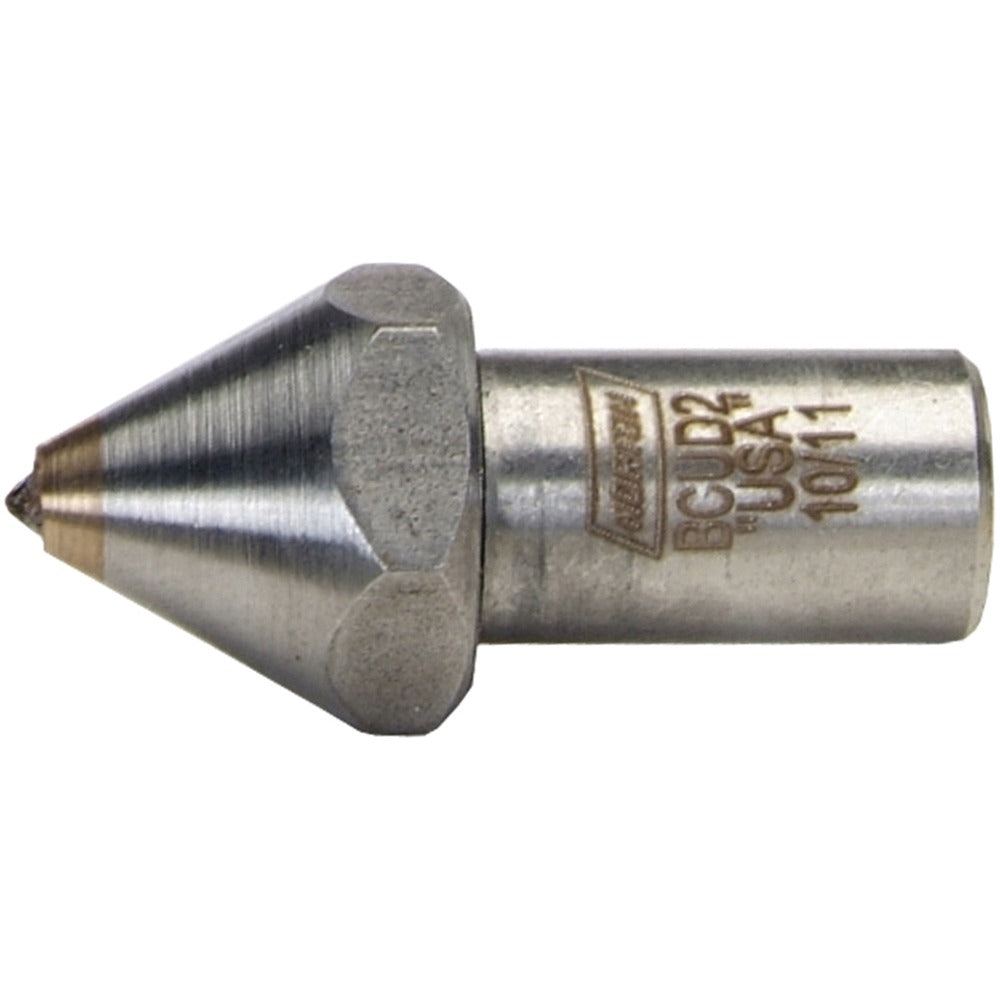

Norton 66260195023 Single Point Diamond Dresser 1/4 Carat

Product Description

The NORTON 66260195023 is a single point diamond dresser used to true and dress grinding wheels in precision grinding applications. It features a natural or synthetic diamond tip mounted at the end of a fixed shank, removing worn abrasive material and restoring the wheel face to a flat, sharp cutting profile. The dresser carries a 1/4 carat diamond, a 60-degree included angle point geometry, and a 7/16 inch shank diameter that fits standard tool post and holder setups. Installation is performed by machinists and grinding machine operators in tool rooms, production shops, and maintenance grinding environments.

This dresser is suited for use on conventional grinding machines including surface grinders, cylindrical grinders, and bench grinders equipped with a compatible tool post or dresser holder. The 7/16 inch shank diameter and 1-7/16 inch shank length allow secure clamping in standard holders. The 5/8 inch head diameter and 60-degree single point geometry provide precise contact geometry for straight or angle dressing passes. It is not resettable, meaning once the diamond is worn it is replaced as a complete unit.

Key Features

• Single point configuration delivers consistent, repeatable contact for truing and dressing grinding wheel faces
• 1/4 carat diamond provides adequate mass for general-purpose precision dressing
• 60-degree included angle point geometry suits standard traverse dressing passes
• 7/16 inch shank diameter fits common tool post and dresser holder styles
• Non-resettable construction — simple full-unit replacement when diamond is spent
• Compact 5/8 inch head diameter allows access in tight wheel guard clearances

Compatibility

Designed as an OEM-style replacement or standard-supply single point diamond dresser for grinding machines equipped with a holder accepting a 7/16 inch diameter shank.

Installation Notes

A qualified machinist or grinding technician should install this dresser. Power down and lock out the grinding machine before mounting or adjusting the dresser in the tool post holder. Secure the shank fully in the holder to prevent movement during dressing passes. Follow the machine manufacturer guidelines and applicable shop safety procedures for wheel dressing operations.
