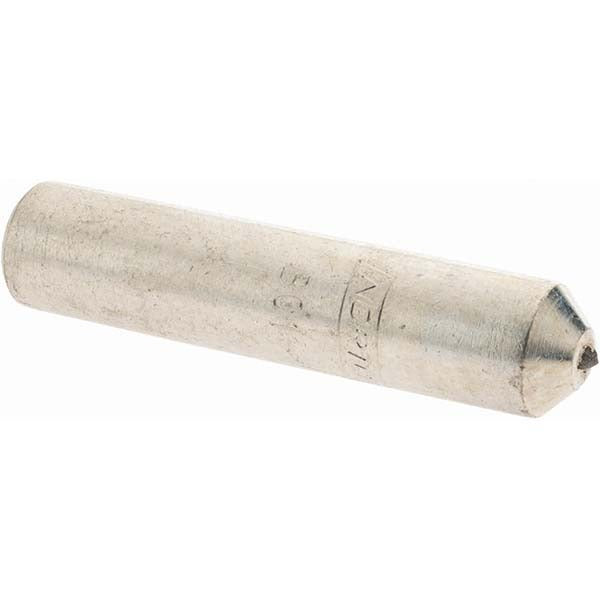

Norton 66260195022 Single Point Diamond Dresser 1/5 Ct

Product Description

The NORTON 66260195022 is a single point diamond dresser used to true and dress grinding wheels in precision grinding applications. It features a 1/5 carat diamond tip set at a 60-degree included angle, delivering a clean, consistent dressing path across the wheel face. The 7/16-inch shank diameter and 2-inch shank length make it compatible with standard diamond dresser holders found on surface, cylindrical, and tool grinders. This dresser is not resettable, meaning it is replaced rather than re-tipped when the diamond wears. It is typically installed by machinists, tool grinders, and maintenance technicians in industrial and shop environments.

This single point diamond dresser is suited for dressing conventional abrasive grinding wheels in both production and toolroom settings. It performs well on surface grinders, cylindrical grinders, and bench grinder setups where consistent wheel geometry is required. The 60-degree point angle makes it appropriate for general-purpose dressing where a sharp, well-defined contact point is needed to restore wheel profile and surface condition.

Key Features

• Single point diamond tip for precise, repeatable wheel dressing
• 1/5 carat diamond for durable, long-lasting dressing performance
• 60-degree included angle suited for general-purpose grinding wheel truing
• 7/16-inch shank diameter fits standard diamond dresser holders
• 2-inch shank length provides adequate reach in typical holder setups
• Non-resettable design — replace the unit when the diamond tip is spent

Compatibility

Designed as an OEM-style single point diamond dresser for use with standard 7/16-inch shank diamond dresser holders on conventional abrasive grinding wheels.

Installation Notes

Installation is performed by a machinist or qualified grinding equipment technician. Before mounting or removing a diamond dresser, shut down the grinder and confirm the wheel has come to a complete stop. Secure the shank firmly in the dresser holder with no lateral play before dressing. Follow the grinder and dresser holder manufacturer guidelines for proper overhang, feed rate, and depth of cut during the dressing pass.
