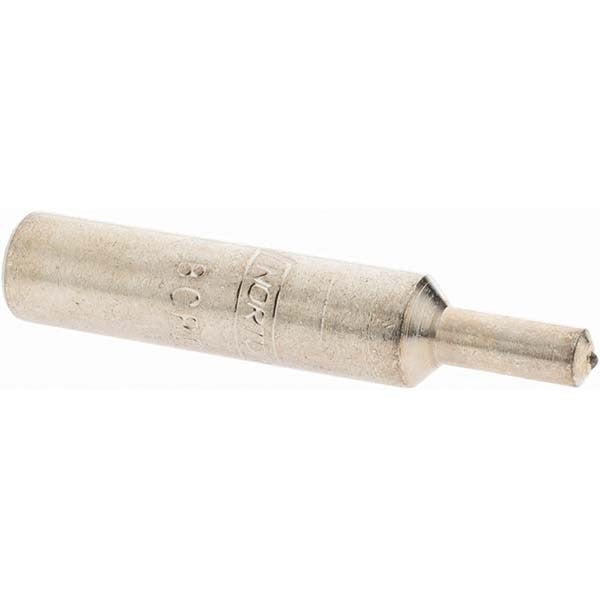

Norton 66260195016 Diamond Dresser 3/8 Inch Shank

Product Description

The NORTON 66260195016 is a single-point diamond dresser designed to true and dress grinding wheels to precise profiles. The dresser uses a natural or synthetic diamond tip in a concave, radius-point configuration, allowing the operator to restore wheel geometry and surface condition for accurate grinding operations. The 3/8-inch shank diameter and 2-inch shank length make this dresser compatible with standard dressing fixture holders found in most surface, cylindrical, and tool-and-cutter grinding setups. It is not resettable, meaning the diamond is fixed in place for consistent, repeatable dressing passes.

This dresser is suited for truing and dressing conventional abrasive grinding wheels in industrial, toolroom, and precision grinding environments. The concave radius-point geometry allows dressing of both flat and contoured wheel faces, with a supported minimum radius of 0.126 inches and a maximum radius of 0.25 inches. Machinists, grinding machine operators, and toolroom technicians are the primary installers and users of this type of dresser.

Key Features

• Single-point diamond tip in a concave radius-point configuration
• 3/8-inch shank diameter fits standard dressing fixture holders
• 2-inch shank length provides secure fixture engagement
• Supports minimum radius of 0.126 inches and maximum radius of 0.25 inches
• Non-resettable design keeps the diamond in a fixed, consistent orientation

Compatibility

Designed as an OEM-style replacement or direct-use single-point diamond dresser for standard grinding machine dressing fixture holders accepting a 3/8-inch shank diameter.

Installation Notes

Installation is performed by qualified machine operators or toolroom technicians. Power down and lock out the grinding machine before mounting or removing the dresser from the fixture holder. Secure the shank firmly in the dressing fixture to prevent movement during the dressing pass. Follow the grinding machine manufacturer guidelines and applicable shop safety procedures when operating the dresser.
