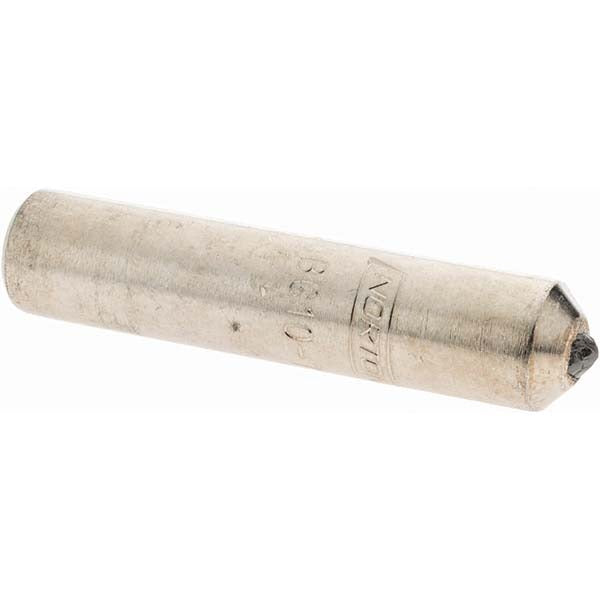

Norton 66260195009 Single Point Diamond Dresser 1 Carat

Product Description

The NORTON 66260195009 is a single point diamond dresser designed for truing and dressing grinding wheels in precision machining and surface grinding applications. Built around a 1 carat diamond tip with a 60-degree included angle, this dresser removes glazed abrasive material and restores accurate wheel geometry. The 7/16 inch shank diameter and 2 inch shank length provide rigid tool post or fixture mounting. It is intended for use by machinists, tool and die workers, and grinding machine operators who require consistent wheel face geometry for tight-tolerance work.

This diamond dresser is used in machine shop environments for dressing aluminum oxide, silicon carbide, and conventional abrasive grinding wheels. Typical applications include surface grinders, cylindrical grinders, and bench grinders where wheel face condition directly affects workpiece finish and dimensional accuracy. The single point design delivers precise contact geometry and is well suited for production dressing operations as well as periodic maintenance dressing.

Key Features

• 1 carat single point diamond for consistent, accurate wheel dressing
• 60-degree included angle provides defined cutting geometry
• 7/16 inch shank diameter fits standard tool post holders and dresser fixtures
• 2 inch shank length allows secure clamping with adequate overhang clearance
• Non-resettable design — diamond is factory-set at the correct angle

Compatibility

Designed as a standard single point diamond dresser for use with conventional abrasive grinding wheels on surface, cylindrical, and bench grinders accepting a 7/16 inch shank diameter tool holder.

Installation Notes

Diamond dressers are installed and used by machinists and grinding machine operators. Power down and lock out the grinding machine before mounting the dresser in the tool post or fixture holder. Secure the shank fully within the holder to minimize vibration during the dressing pass. Follow the machine manufacturer guidelines for dresser feed rate and depth of cut — improper traverse speed can chip or damage the diamond tip.
