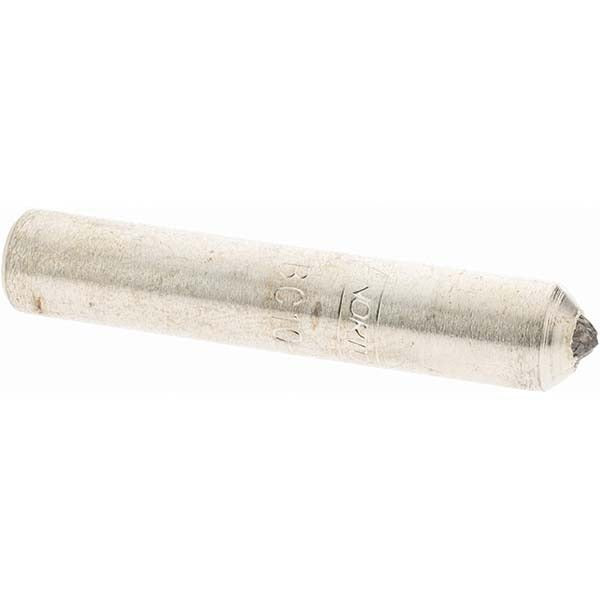

Norton 66260195008 Diamond Dresser 1 Carat Single Point

Product Description

The NORTON 66260195008 is a single-point diamond dresser designed for precision dressing and truing of grinding wheels. It uses a 1-carat natural or synthetic diamond tip mounted on a 3/8-inch diameter shank with a 2-inch shank length. The 60-degree included angle on the single point allows for controlled, consistent material removal from the wheel face, restoring proper profile and cutting action. This tool is used by grinding machine operators and tool-and-die tradespeople who need to maintain wheel geometry and surface finish quality during production or maintenance operations.

This diamond dresser is suited for bench grinders, surface grinders, cylindrical grinders, and tool-and-cutter grinders found in machine shops, maintenance facilities, and manufacturing environments. The 3/8-inch shank fits standard dresser holders on most manual and semi-automatic grinding setups. It is appropriate for dressing aluminum oxide, silicon carbide, and conventional abrasive wheels. The single-point configuration gives the operator precise control over the dressing pass depth and angle.

Key Features

• Single-point tip geometry with a 60-degree included angle for controlled wheel dressing
• 1-carat diamond for extended service life on conventional abrasive wheels
• 3/8-inch shank diameter fits standard grinding dresser holders
• 2-inch shank length provides adequate reach and rigidity in most holders
• Non-resettable design — replace the unit when the diamond is spent

Compatibility

Designed as a standard single-point diamond dresser for use with conventional abrasive grinding wheels in bench, surface, cylindrical, and tool-and-cutter grinding applications where a 3/8-inch shank dresser holder is present.

Installation Notes

Diamond dressers are typically installed and used by machining or maintenance trade personnel familiar with grinding equipment. Power down and lock out the grinder before mounting the dresser in the holder. Secure the shank firmly in the dresser block, ensuring the diamond tip is positioned at the correct angle relative to the wheel face — typically 10 to 15 degrees off vertical, though consult machine documentation for specific setup guidance. Take light, consistent passes across the wheel face during dressing; avoid forcing the point or taking excessively deep cuts, which can damage the diamond tip or the wheel.
