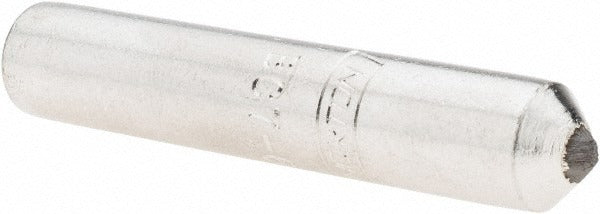

Norton 66260195006 Single Point Diamond Dresser 3/4 Carat

Product Description

The NORTON 66260195006 is a single point diamond dresser designed for truing and dressing grinding wheels in precision machining environments. It features a natural diamond tip set at a 60-degree included angle, which allows the dresser to make consistent, controlled contact across the wheel face. With a 3/4 carat diamond and a 3/8 inch shank diameter, this tool is built for use in tool rooms, production grinding cells, and maintenance shops where wheel geometry must be maintained accurately. Machinists and grinding technicians install this dresser in a dedicated holder or fixture mounted to the machine table or wheel guard.

This diamond dresser is suited for surface grinders, cylindrical grinders, and bench grinders where wheel face conditioning is required on a regular basis. The 2 inch shank length provides adequate reach for standard mounting setups. The single point configuration is most effective for truing wheel faces, breaking glaze, and re-establishing correct wheel profile. This tool is not resettable, meaning the diamond is permanently bonded to the shank in its original orientation.

Key Features

• Single point diamond tip for precise wheel truing and dressing
• 3/4 carat diamond for durable, long-service contact life
• 60-degree included angle for consistent wheel face engagement
• 3/8 inch shank diameter for compatibility with standard dresser holders
• 2 inch shank length for adequate fixture reach
• Non-resettable design — fixed diamond orientation from the factory

Compatibility

Designed as an OEM-style replacement or direct-use single point diamond dresser for standard grinding machine dresser holder setups accepting a 3/8 inch shank diameter.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Before mounting, power down and lock out the grinding machine per OSHA lockout/tagout procedures. Secure the shank firmly in the dresser holder to prevent chatter or movement during dressing passes. Always traverse the dresser across the wheel face at a controlled feed rate — never plunge the diamond directly into the wheel face.
