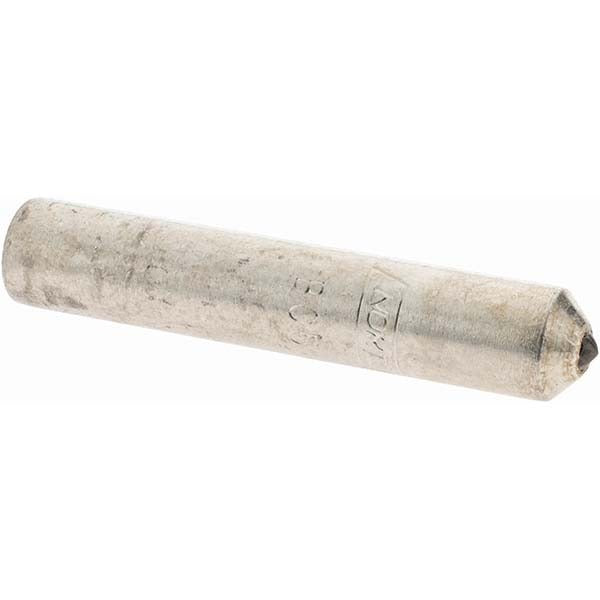

Norton 66260195004 Single Point Diamond Dresser

Product Description

The NORTON 66260195004 is a single point diamond dresser designed for truing and dressing abrasive grinding wheels. It uses a 1/2 carat industrial diamond tip set at a 60-degree included angle to shear material cleanly from the wheel face, restoring wheel geometry and surface condition. The 3/8 inch shank diameter and 2 inch shank length suit standard dresser holders found on surface grinders, cylindrical grinders, and bench grinders. This tool is not resettable once the diamond is worn. Machinists, tool grinders, and maintenance technicians install and use this dresser in precision grinding operations.

Single point diamond dressers are used across general metalworking, tool and die, and manufacturing maintenance environments. They are suited for dressing aluminum oxide and silicon carbide grinding wheels on surface grinders, cylindrical grinders, and tool grinders. The 3/8 inch shank fits the majority of standard nib-style dresser holders. This dresser is appropriate for both production and maintenance dressing applications where consistent wheel profile and surface finish are required.

Key Features

• 1/2 carat industrial diamond tip for effective wheel truing and dressing
• Single point design with 60-degree included angle for clean, precise wheel face contact
• 3/8 inch shank diameter fits standard dresser holders
• 2 inch shank length provides adequate reach and secure clamping
• Non-resettable construction — straightforward replacement when diamond is spent

Compatibility

Designed as an OEM-style replacement single point diamond dresser for use with standard nib dresser holders accepting a 3/8 inch shank diameter on surface, cylindrical, and bench grinding machines.

Installation Notes

Installation is performed by machinists or maintenance technicians. Power down and lock out the grinder before mounting or removing the dresser. Secure the shank firmly in the dresser holder with no excessive overhang to minimize vibration during dressing. Follow machine manufacturer guidelines and applicable shop safety standards when operating grinding equipment.
