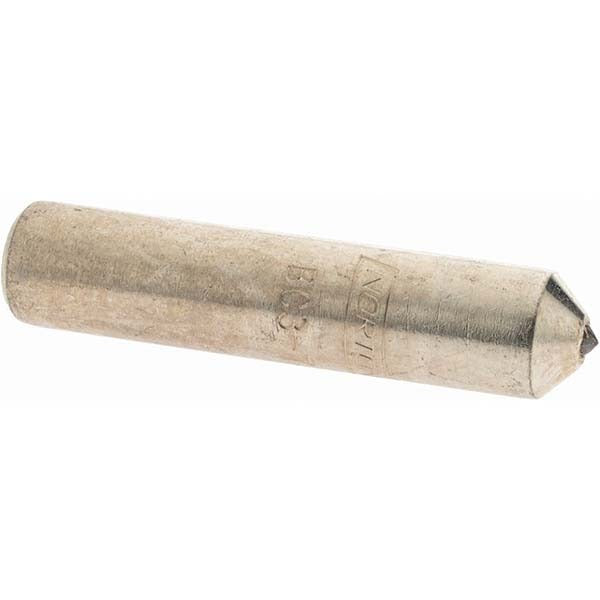

Norton 66260195003 Single Point Diamond Dresser 1/3 Carat

Product Description

The NORTON 66260195003 is a single point diamond dresser designed to true and dress grinding wheels in industrial and toolroom applications. It features a 1/3 carat natural diamond tip set at a 60-degree included angle, which concentrates dressing force into a precise contact point for consistent wheel geometry. The shank measures 7/16 inch in diameter and 2 inches in length, fitting standard dresser holders used across surface, cylindrical, and bench grinding setups. Machinists and grinding technicians use this tool to restore wheel face geometry, remove glazing, and open wheel structure before precision grinding operations.

This dresser is suited for production grinding environments and toolroom use where wheel condition directly affects part finish and dimensional accuracy. It is appropriate for dressing aluminum oxide, silicon carbide, and conventional abrasive wheels. The single point configuration delivers a fine, consistent dress line and is commonly used where a controlled, repeatable wheel profile is required. The point is not resettable, so replacement is required once the diamond is worn.

Key Features

• Single point diamond tip for precise, controlled wheel dressing
• 1/3 carat diamond for durable abrasive contact
• 60-degree included angle optimizes point geometry for consistent dressing passes
• 7/16 inch shank diameter fits standard dresser holders
• 2 inch shank length provides secure clamping depth
• Non-resettable design — straightforward replacement when tip is spent

Compatibility

Designed for use with standard dresser holders accepting a 7/16 inch shank diameter; compatible with conventional abrasive grinding wheels in surface, cylindrical, and bench grinding applications.

Installation Notes

Installation is performed by grinding technicians or machinists. Power down and lock out the grinding machine before securing the dresser in the holder. Ensure the shank is clamped with adequate contact length and that the diamond tip is positioned at the correct angle relative to the wheel face per the machine manufacturer's guidelines. Inspect the diamond point for wear before each use and replace the unit when the tip shows signs of flat wear or chipping.
