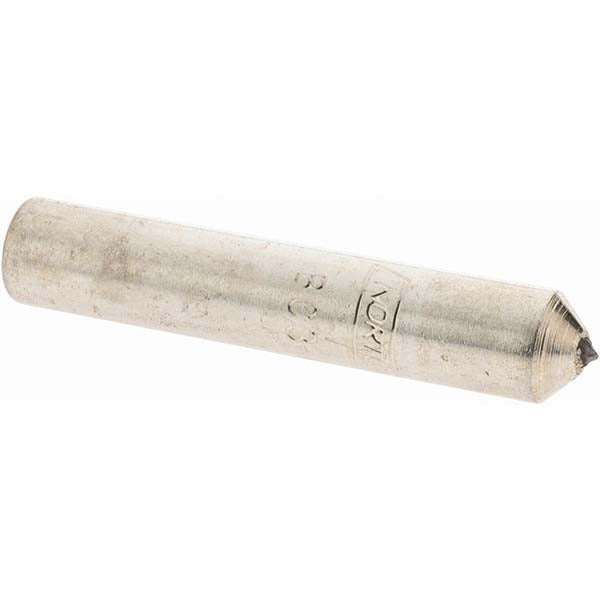

Norton 66260195002 Diamond Dresser 1/3 Carat Single Point

Product Description

The NORTON 66260195002 is a single-point diamond dresser used to true and dress abrasive grinding wheels. The tool uses a natural or synthetic diamond mounted at the tip to restore wheel geometry and surface condition, keeping the wheel cutting efficiently and running true. It features a 1/3-carat diamond with a 60-degree included angle point, a 3/8-inch shank diameter, and a 2-inch shank length. Grinding machine operators and toolroom machinists install this dresser in a standard tool post or dressing fixture mounted to the machine table or wheel guard.

This dresser suits bench grinders, surface grinders, cylindrical grinders, and tool and cutter grinders in metalworking, toolroom, and production grinding applications. It is appropriate for dressing aluminum oxide, silicon carbide, and similar conventional abrasive wheels. The single-point configuration works well for precision form dressing and general wheel face truing where controlled material removal is needed. It is not resettable once the diamond is worn.

Key Features

• Single-point tip for precise wheel truing and face dressing
• 1/3-carat diamond with 60-degree included angle for controlled contact
• 3/8-inch shank diameter fits standard dressing fixture holders
• 2-inch shank length provides secure clamping in tool posts
• Non-resettable construction — replace when diamond is spent

Compatibility

Designed as a standard single-point diamond dresser for use with conventional abrasive grinding wheels on surface, bench, and cylindrical grinders equipped with a 3/8-inch compatible dressing tool holder.

Installation Notes

A qualified machinist or grinding machine operator should install this dresser. Power down and lock out the grinder before mounting or adjusting the dresser in the tool post or fixture. Secure the shank firmly to minimize vibration during the dressing pass, and ensure the dresser is angled slightly in the direction of wheel rotation per standard shop practice. Do not use on superabrasive CBN or diamond wheels.
