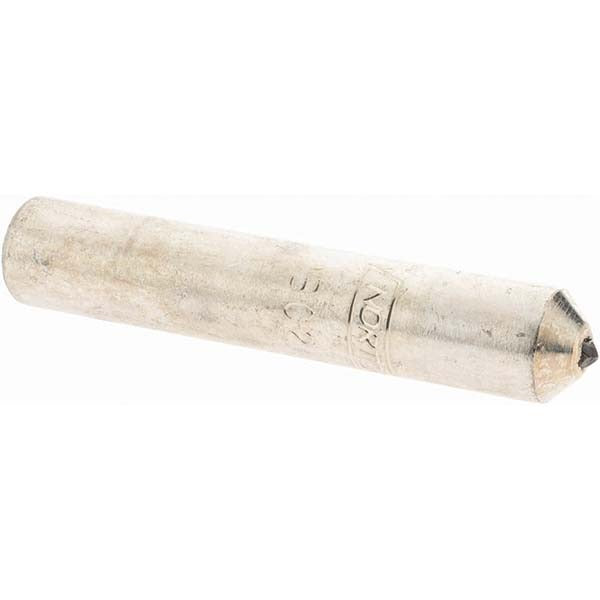

Norton 66260195000 Single Point Diamond Dresser 1/4 Carat

Product Description

The NORTON 66260195000 is a single point diamond dresser designed for truing and dressing grinding wheels in industrial and machine shop applications. The tool uses a 1/4 carat natural or synthetic diamond tip set at a 60-degree included angle, which allows precise material removal from the wheel face during dressing passes. The 3/8-inch shank diameter and 2-inch shank length provide a compact, rigid setup that fits standard tool holders and magnetic-base dresser fixtures. This dresser is not resettable, meaning the diamond tip is fixed in place for the life of the tool. Machinists, tool and die makers, and grinding machine operators are the primary users.

This dresser suits surface grinders, cylindrical grinders, and bench grinders where wheel truing is required to maintain geometry and surface finish quality. It is a straightforward single point design appropriate for general-purpose dressing of aluminum oxide and silicon carbide wheels in both job shop and production floor environments. The 60-degree point geometry makes it well-suited for dressing straight and profiled wheel faces where controlled contact is needed.

Key Features

• Single point diamond tip with 60-degree included angle for controlled wheel contact
• 1/4 carat diamond size suitable for general-purpose grinding wheel dressing
• 3/8-inch shank diameter fits standard dresser holders and magnetic bases
• 2-inch shank length provides a compact, rigid mounting profile
• Non-resettable design — fixed diamond position for consistent geometry throughout service life

Compatibility

Designed as an OEM-style single point dresser for use with standard 3/8-inch shank dresser holders on surface, cylindrical, and bench grinding machines.

Installation Notes

Installation is performed by a qualified machinist or grinding machine operator. Power down and de-energize the grinding machine before mounting or adjusting the dresser. Secure the shank firmly in the dresser holder to prevent movement during the dressing pass. Follow the machine manufacturer guidelines and applicable shop safety procedures when operating the grinder after mounting.
