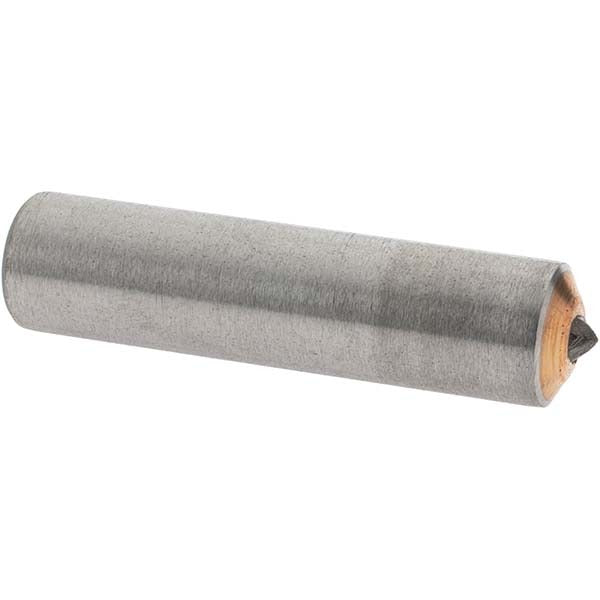

Norton 66260157473 Diamond Dresser 2 Carat

Product Description

The NORTON 66260157473 is a single-point diamond dresser used to true and dress abrasive grinding wheels in precision machining operations. The tool features a 2-carat diamond tip mounted on a 0.5-inch diameter shank with a 2-inch shank length, making it compatible with standard tool holders and magnetic chuck setups. Single-point dressers restore wheel geometry, remove glazing, and open the abrasive face to maintain consistent cut and surface finish. This tool is handled by machinists, tool and die makers, and grinding machine operators in production and maintenance environments.

This diamond dresser is suited for use on surface grinders, cylindrical grinders, and bench grinders where wheel truing and dressing are performed as part of regular machine maintenance. The 0.5-inch shank fits common dresser holders and magnetic base fixtures found in most machine shops. It is appropriate for both roughing and finishing dressing passes on vitrified and resin-bonded grinding wheels in industrial and toolroom settings.

Key Features

• Single-point diamond tip for precise wheel truing and dressing
• 2-carat diamond for extended service life under repeated dressing cycles
• 0.5-inch shank diameter fits standard dresser holders and magnetic fixtures
• 2-inch shank length provides adequate reach in common tool holding setups
• Compact and lightweight at 0.11 pounds for easy handling and positioning

Compatibility

Designed as an OEM-style replacement and standard single-point diamond dresser for use with surface grinders, cylindrical grinders, and bench grinders equipped with 0.5-inch shank dresser holders.

Installation Notes

Installation is performed by a machinist or grinding machine operator. Before mounting or replacing the dresser, power down the grinding machine and confirm the wheel has come to a complete stop. Secure the shank firmly in the dresser holder to prevent movement during dressing passes. Present the diamond tip at the recommended angle to the wheel face per the machine manufacturer's guidelines, and avoid applying excessive infeed depth in a single pass.
