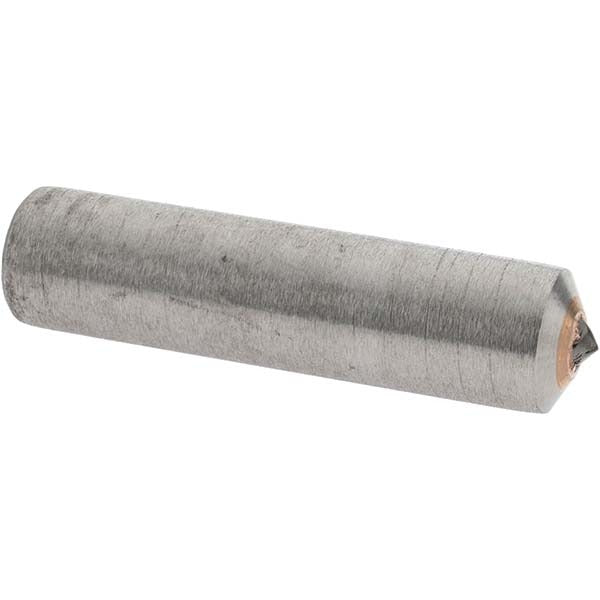

Norton 66260157471 Single Point Diamond Dresser 3/4 Carat

Product Description

The NORTON 66260157471 is a single point diamond dresser used to true and dress abrasive grinding wheels in precision grinding applications. The tool features a 3/4 carat diamond tip mounted on a 1/2 inch diameter shank, giving operators solid tool control during dressing passes. The 2 inch shank length provides adequate reach for standard wheel guard clearances. Grinding wheel dressers of this type are standard toolroom items installed and operated by machinists, tool grinders, and maintenance technicians working with surface, cylindrical, or bench grinders.

This dresser is suited for use in machine shops, toolrooms, and industrial maintenance environments where grinding wheels require frequent truing to maintain profile accuracy and cutting performance. It handles dressing on aluminum oxide, silicon carbide, and comparable conventional abrasive wheels. The single point configuration is appropriate for straight wheel face dressing and light profile work on precision grinding equipment.

Key Features

• Single point diamond tip for precise wheel truing and dressing
• 3/4 carat diamond provides extended service life in production dressing applications
• 1/2 inch shank diameter fits standard dresser holders and tool posts
• 2 inch shank length accommodates typical wheel guard clearances
• Compact and lightweight at 0.12 pounds for easy handling

Compatibility

Designed as an OEM-style replacement or direct-use single point diamond dresser compatible with standard 1/2 inch diameter dresser holders used on conventional grinding machines.

Installation Notes

Diamond dressers are installed and used by qualified machinists or grinding technicians. Before mounting, power down and lock out the grinder per OSHA lockout/tagout procedures. Secure the shank firmly in the dresser holder with no excessive overhang. Always traverse the dresser across the wheel face at a controlled feed rate and never stop the dresser mid-pass on a running wheel.
