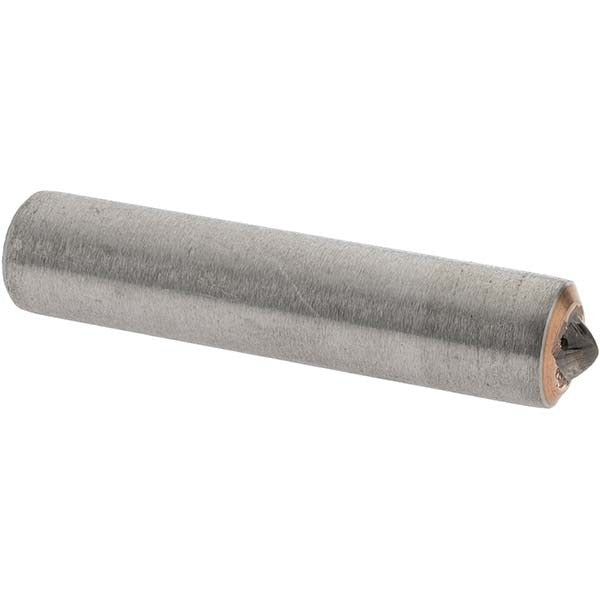

Norton 66260157467 Diamond Dresser 2 Carat

Product Description

The NORTON 66260157467 is a single-point diamond dresser used to true and dress abrasive grinding wheels in machine shop and production grinding applications. It features a 2-carat diamond tip mounted on a 7/16-inch diameter shank with a 2-inch shank length. Single-point dressers are the standard tool for restoring wheel geometry and surface condition on bench grinders, surface grinders, and cylindrical grinders. Machinists and grinding machine operators use this tool to maintain wheel flatness, remove glazing, and expose fresh abrasive grain for consistent stock removal.

This diamond dresser is suited for use in metalworking shops, tool rooms, and production grinding environments where wheel condition directly affects part finish and dimensional accuracy. It is compatible with standard wheel dressing holders and magnetic-base fixtures that accept a 7/16-inch shank. Typical applications include dressing aluminum oxide, silicon carbide, and other conventional abrasive wheels on horizontal and vertical spindle grinders.

Key Features

• Single-point diamond tip for precise, controlled wheel truing and dressing
• 2-carat diamond size suited for medium to large grinding wheel dressing tasks
• 7/16-inch shank diameter fits standard dressing tool holders and fixtures
• 2-inch shank length provides adequate reach and secure clamping in holder
• Compact and lightweight at 0.1 pounds for easy handling and storage

Compatibility

Designed for use with standard diamond dresser holders accepting a 7/16-inch diameter shank. Compatible with conventional abrasive grinding wheels on surface, bench, and cylindrical grinders in typical machine shop applications.

Installation Notes

Diamond dressers are installed and used by machinists or grinding machine operators. Before mounting, ensure the grinding machine is powered off and the wheel has come to a complete stop. Secure the shank firmly in the dresser holder with no overhang beyond what is needed, as excessive shank extension increases chatter. Always traverse the dresser across the wheel face at a consistent feed rate and use appropriate eye protection during dressing operations.
