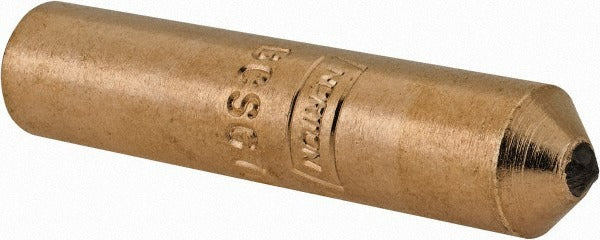

Norton 66260156908 Single Point Diamond Dresser 3/4 Carat

Product Description

The NORTON 66260156908 is a single point diamond dresser used to true and dress abrasive grinding wheels in precision machining and tool-and-die applications. The dresser features a natural diamond tip mounted to a steel shank measuring 7/16 inch in diameter and 2 inches in length. With a 3/4 carat diamond, it delivers consistent material removal when restoring grinding wheel geometry, removing glazing, or opening the wheel face for improved cut rate. This tool is installed by machinists, tool grinders, and maintenance technicians in production and job shop environments.

This diamond dresser is suited for use on bench grinders, surface grinders, cylindrical grinders, and tool and cutter grinders wherever a single point dressing operation is required. It is used in both light production and maintenance settings to keep grinding wheels running true. The non-resettable design means the diamond tip is fixed in place at the factory and is not field-adjustable.

Key Features

• Single point diamond tip for precise, repeatable wheel truing and dressing
• 3/4 carat diamond size for durability across standard grinding wheel diameters
• 7/16 inch shank diameter fits common dresser holders and grinding machine tool posts
• 2 inch shank length provides adequate reach in standard tool post or holder setups
• Non-resettable construction — diamond is factory-set for consistent point geometry

Compatibility

Designed as a standard single point diamond dresser for use with bench, surface, cylindrical, and tool and cutter grinders that accept a 7/16 inch shank dresser holder.

Installation Notes

Installation is performed by a machinist or qualified maintenance technician. Power down and lock out the grinder before mounting the dresser in the tool post or holder. Secure the shank firmly to minimize vibration during dressing passes. Follow machine manufacturer guidelines and applicable shop safety procedures when operating the grinder after dresser installation.
