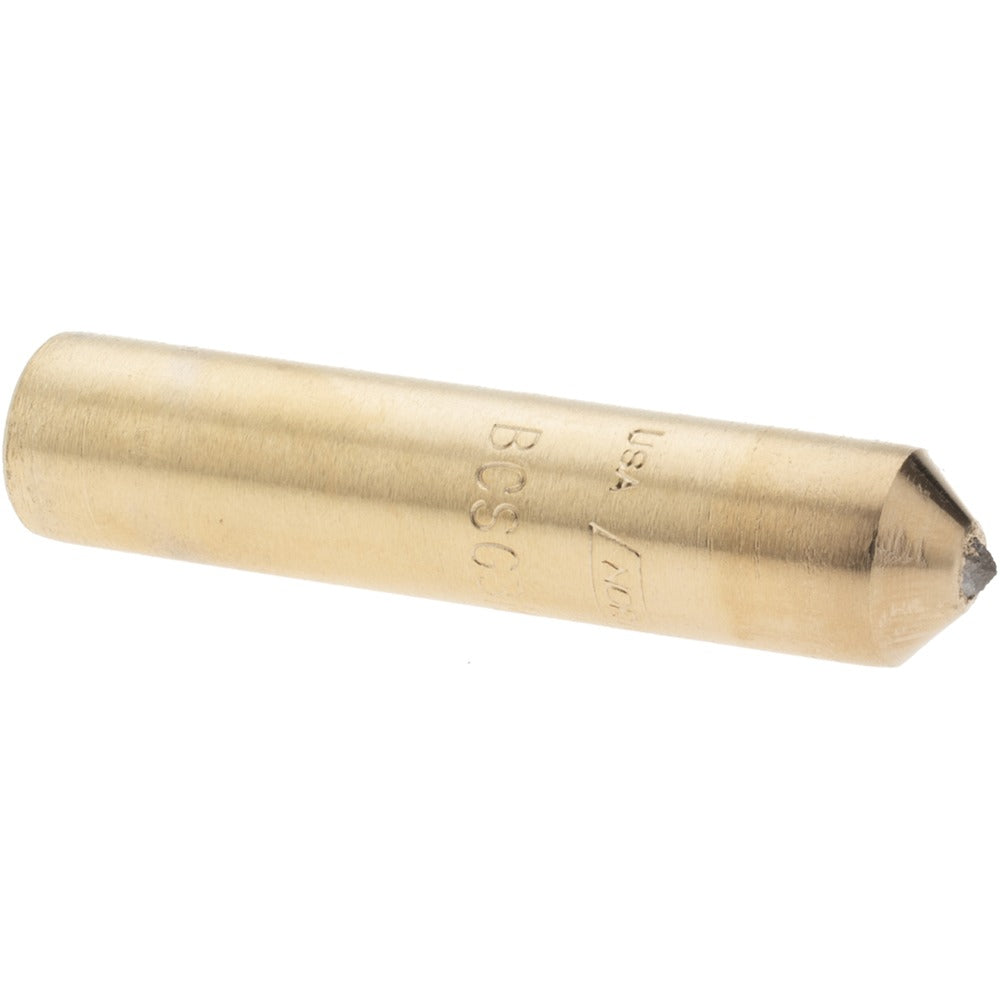

Norton 66260156906 Single Point Diamond Dresser 1/3 Carat

Product Description

The NORTON 66260156906 is a single point diamond dresser designed for truing and dressing grinding wheels in precision machining and grinding operations. It uses a natural or industrial diamond tip mounted on a 7/16-inch diameter shank to restore the cutting face of abrasive wheels, removing glazing and restoring proper wheel geometry. The 1/3-carat diamond size is suited for medium-duty dressing tasks on conventional and surface grinders. The shank length of 2 inches provides adequate reach and clearance in standard tool post and holder setups. This dresser is a non-resettable type, meaning the diamond is fixed and not repositionable once worn.

This diamond dresser is used in machine shops, grinding rooms, and tool-and-die environments where grinding wheel maintenance is part of regular operations. It fits into standard diamond dresser holders and tool posts found on surface grinders, cylindrical grinders, and bench grinders. Machinists, grinding specialists, and toolroom technicians install and use this dresser to maintain wheel profile and surface condition between dress cycles.

Key Features

• Single point diamond tip for precise, controlled wheel truing
• 1/3-carat diamond size suitable for medium-duty dressing applications
• 7/16-inch shank diameter fits standard dresser holders and tool posts
• 2-inch shank length provides clearance in typical grinding setups
• Non-resettable design with fixed diamond orientation

Compatibility

Designed for use with standard diamond dresser holders and tool posts accepting a 7/16-inch shank diameter, compatible with surface grinders, cylindrical grinders, and similar abrasive grinding equipment.

Installation Notes

Installation and use of this dresser should be performed by qualified machinists or grinding technicians familiar with wheel dressing procedures. Power down and lock out the grinding machine before securing the dresser in the tool holder. Ensure the shank is clamped firmly with no runout before engaging the wheel. Always wear appropriate eye protection and follow applicable machine guarding standards during dressing operations.
