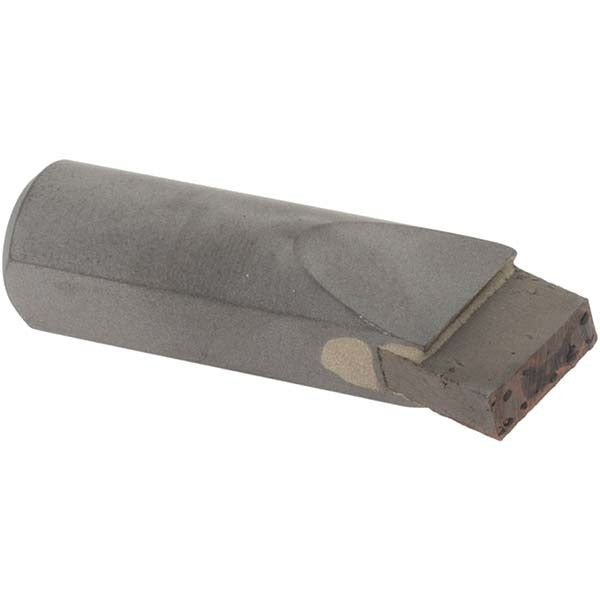

Norton 66260149450 Diamond Dresser 7/16 Inch Shank

Product Description

The NORTON 66260149450 is a multi-point diamond dresser designed for precision truing and dressing of grinding wheels. It features a 7/16-inch shank diameter and a 3A-G shape profile, making it suited for restoring the cutting surface geometry and surface finish of abrasive wheels. The 15-degree included angle and 5/32-inch head thickness allow controlled material removal from the wheel face. Weighing just 0.1 pounds, this tool is compact and easy to handle during dressing operations. It is installed by machinists, tool grinders, and grinding machine operators working in production or maintenance environments.

This diamond dresser is used wherever grinding wheel conditioning is required, including surface grinding, cylindrical grinding, and tool and cutter grinding applications. The multi-point configuration distributes wear across several diamond points, extending dresser service life compared to single-point designs. It is appropriate for use in both job shop and production settings where consistent wheel geometry is critical to part tolerance and surface quality.

Key Features

• Multi-point diamond configuration for extended dresser service life
• 3A-G shape profile suited for standard wheel face dressing operations
• 7/16-inch shank diameter fits common grinding machine dresser holders
• 15-degree included angle for controlled wheel face engagement
• 3/8-inch head length with 5/32-inch head thickness for precise dressing geometry
• Lightweight at 0.1 pounds for easy positioning and handling

Compatibility

Designed as a replacement-style multi-point diamond dresser for grinding machines accepting a 7/16-inch shank dresser holder. Verify holder bore diameter and clamping method before installation.

Installation Notes

Diamond dressers are typically mounted by machinists or grinding machine operators using a compatible dresser holder or fixture secured to the machine table or wheel guard. Power down and lock out the grinding machine before mounting or adjusting the dresser. Ensure the shank is fully seated and clamped securely before resuming operation. Always dress the wheel with the machine guard in place and follow applicable shop safety procedures for abrasive wheel equipment.
