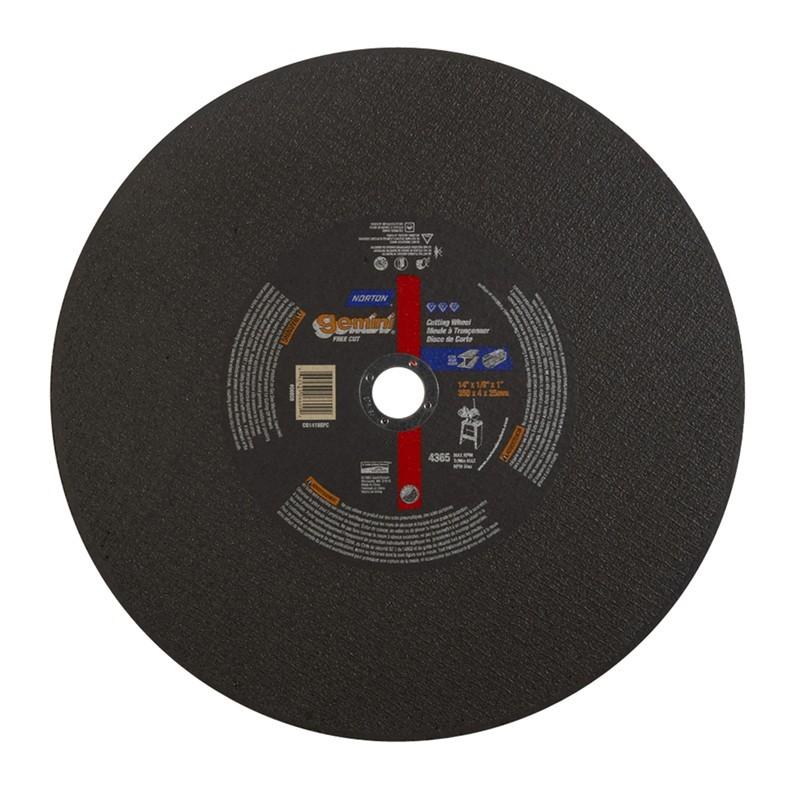

Norton 66253306609 Cut-off Blade 14x0.125x1 Type 1 Metal

Product Description

The NORTON 66253306609 is a Type 1 stationary saw cut-off blade engineered for metal cutting applications. Built with an aluminum oxide abrasive bond, this blade measures 14 inches in diameter, 0.125 inches (1/8 inch) thick, with a 1-inch arbor bore. The grain designation is 4365, which reflects the abrasive specification for this wheel. Designed for use on fixed, stationary cut-off saws, this blade delivers consistent slicing action through ferrous metals and structural steel stock. It is sold individually and is a direct industrial-supply item intended for professional shop and field-cutting operations.

This blade is suited for stationary abrasive cut-off saws found in fabrication shops, mechanical and HVAC contractor shops, plumbing and pipefitting operations, and general metalworking environments. The aluminum oxide abrasive composition makes it appropriate for cutting mild steel, iron, and similar ferrous materials. It is typically used when straight, controlled cuts are needed on bar stock, pipe, angle iron, conduit, and structural profiles.

Key Features

• Type 1 flat wheel geometry for use on stationary cut-off saws
• Aluminum oxide abrasive for ferrous metal cutting
• 14-inch diameter with 0.125-inch thickness for controlled kerf
• 1-inch arbor bore for compatibility with standard stationary saw spindles
• Grain designation 4365 per Norton abrasive specification

Compatibility

Designed as an OEM-style replacement or standard supply blade for stationary abrasive cut-off saws accepting a 14-inch diameter, 1-inch arbor Type 1 wheel.

Installation Notes

Installation must be performed by a qualified operator following ANSI B7.1 safety standards for abrasive wheels. Always power down and lock out the saw before mounting or removing a blade. Inspect the wheel for cracks or chips before installation and never exceed the maximum RPM rating marked on the wheel. Ensure the arbor flanges and blotters are clean and properly seated before resuming operation.

Technical Specifications

• Wheel Type: Type 1
• Abrasive Material: Aluminum Oxide
• Diameter: 14 inches
• Thickness: 0.125 inches
• Arbor Bore: 1 inch
• Grain Designation: 4365
• Minimum Order Quantity: 5 each
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 66253306609
