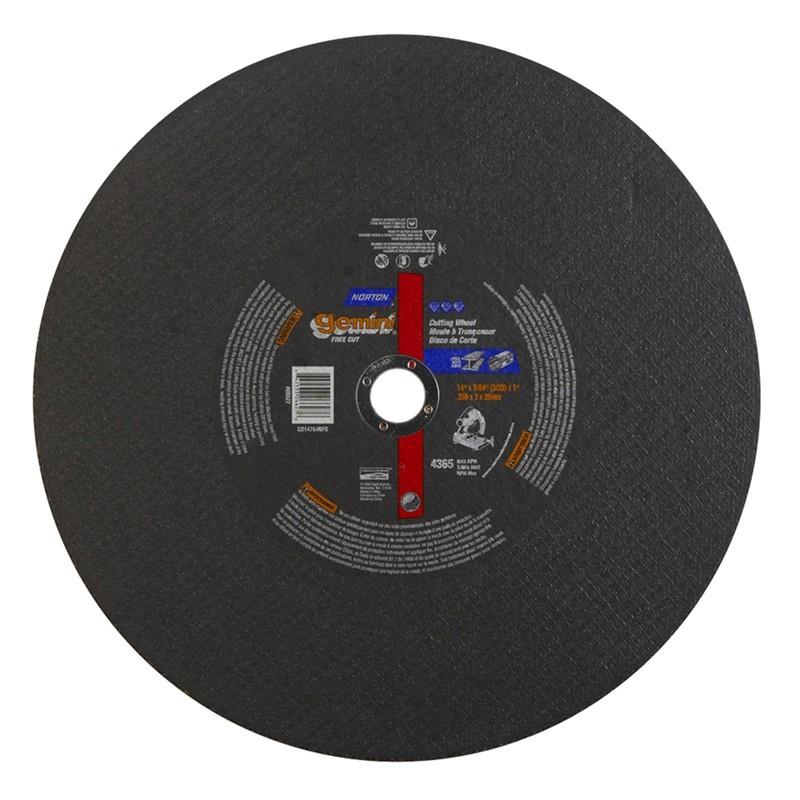

Norton 662533-06627 Type 1 Chop Saw Blade 14 in Metal

Product Description

The NORTON 662533-06627 is a Type 1 reinforced chop saw blade engineered for metal cutting applications. Built with Gemini Aluminum Oxide abrasive, this blade delivers consistent cut performance on ferrous metals in fabrication, mechanical, and industrial service environments. At 14 inches in diameter with a 1-inch arbor bore and a blade thickness of approximately 0.109 inches (7/64 inch), it is sized for standard 14-inch chop saws and abrasive cutoff machines. The maximum rated speed is 4365 RPM. The reinforced construction adds structural integrity under the lateral and torsional loads common in cutoff work. Fabricators, pipefitters, and ironworkers are the primary installers and users of this blade type.

This blade is suited for repeated cutoff operations on steel pipe, structural steel, rebar, and similar ferrous stock in both shop and field settings. The Gemini Aluminum Oxide abrasive grain is a standard formulation for general-purpose metal cutting, balancing cut rate and wheel life across a range of mild and medium-hardness steels. It is sold in minimum quantities of 10 per order, making it appropriate for stocking in shop supply or fleet service environments where blade consumption is steady.

Key Features

• Gemini Aluminum Oxide abrasive formulated for metal cutting
• Type 1 flat profile for straight cutoff operations
• Reinforced construction for added structural durability under load
• 14-inch diameter with 1-inch arbor bore fits standard chop saw spindles
• 4365 RPM maximum rated speed
• 7/64-inch blade thickness for controlled kerf width

Compatibility

Designed for use in standard 14-inch abrasive chop saws and cutoff machines with a 1-inch arbor bore and a spindle speed at or below 4365 RPM.

Installation Notes

This blade must be mounted by qualified personnel familiar with abrasive wheel safety per ANSI B7.1 standards. Always confirm the machine spindle speed does not exceed the blade maximum RPM rating before mounting. Inspect the blade for cracks or damage before each use and never use a blade that shows any visible defect. Use the correct blade flanges and tighten the arbor nut securely before operating.

Technical Specifications

• Abrasive Type: Gemini Aluminum Oxide
• Blade Profile: Type 1
• Construction: Reinforced
• Blade Diameter: 14 inches
• Blade Thickness: 7/64 inch (approximately 0.109 inches)
• Arbor Bore: 1 inch
• Maximum RPM: 4365
• Application: Metal Cutting
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662533-06627
