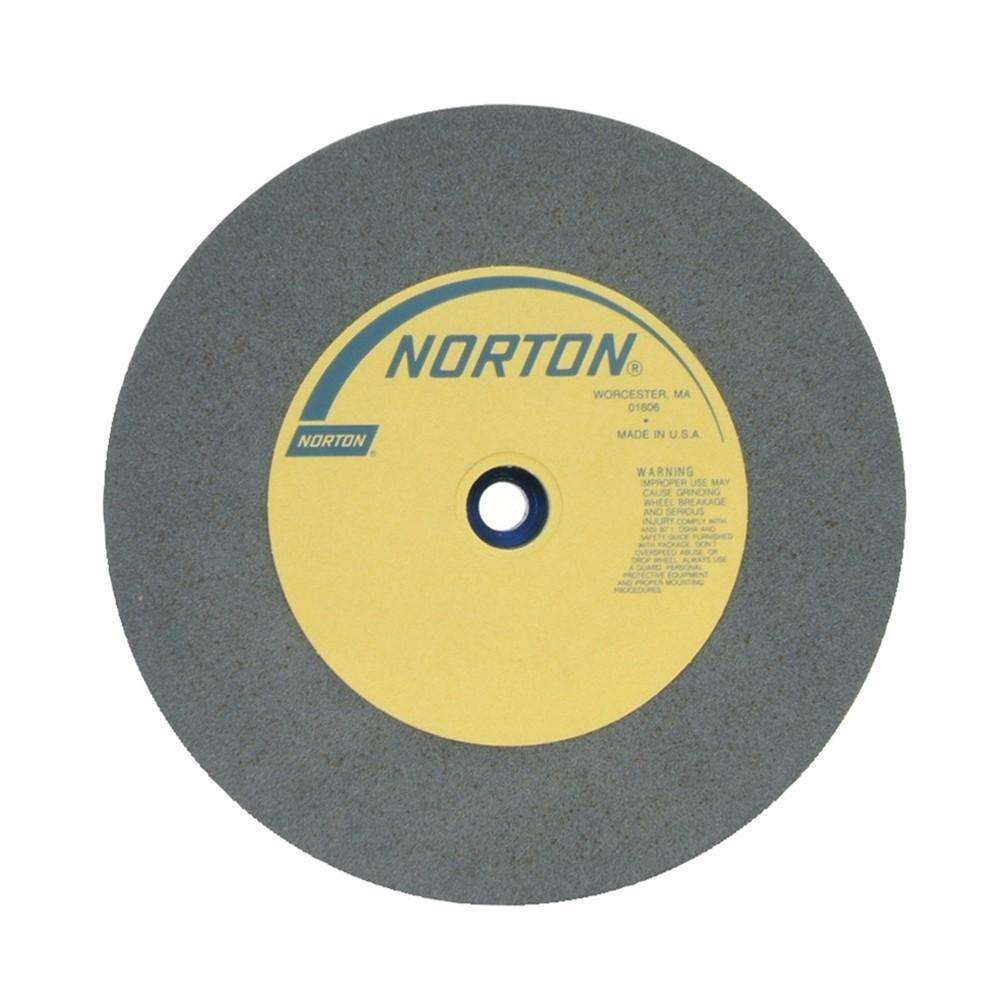

Norton 662532-63360 Bench Grinding Wheel 12x2x1.25 Fine

Product Description

The NORTON 662532-63360 is a Type 1 silicon carbide bench and pedestal grinding wheel designed for grinding and shaping non-metallic materials. Measuring 12 inches in diameter, 2 inches wide, with a 1.25-inch arbor bore, this green-colored wheel carries a fine grit rating and a maximum operating speed of 2070 RPM. It is built for use on standard bench or pedestal grinders in trade and industrial environments. Maintenance technicians, tool room operators, and shop professionals rely on silicon carbide wheels when working with materials such as carbide tooling, ceramics, stone, and other hard non-metals.

This wheel is suited for bench and pedestal grinder setups in manufacturing shops, maintenance facilities, and trade service environments. The fine grit designation makes it appropriate for finishing and light material removal passes on non-metallic workpieces. It is sold individually and is intended for professional use on stationary grinding equipment rated to accept a 12-inch wheel.

Key Features

• Silicon carbide abrasive construction for effective grinding of non-metallic materials
• Green wheel color identifies silicon carbide formulation for non-metal applications
• Fine grit rating for finishing and controlled material removal
• Maximum operating speed of 2070 RPM
• Type 1 straight wheel profile for standard bench and pedestal grinder compatibility
• 1.25-inch arbor bore fits common bench and pedestal grinder spindles

Compatibility

Designed as a Type 1 straight bench and pedestal grinding wheel for use on stationary grinders that accept a 12-inch diameter wheel with a 1.25-inch arbor bore.

Installation Notes

Bench and pedestal grinding wheels must be installed and dressed by a qualified operator following applicable ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation using the ring test, and never exceed the rated maximum RPM of 2070. Confirm the grinder spindle speed does not exceed the wheel rating before placing the unit in service.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Silicon Carbide
• Application: Non-Metal Grinding
• Grit Grade: Fine
• Diameter: 12 inches
• Width: 2 inches
• Arbor Bore: 1.25 inches
• Maximum RPM: 2070
• Color: Green
• Sold As: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662532-63360
