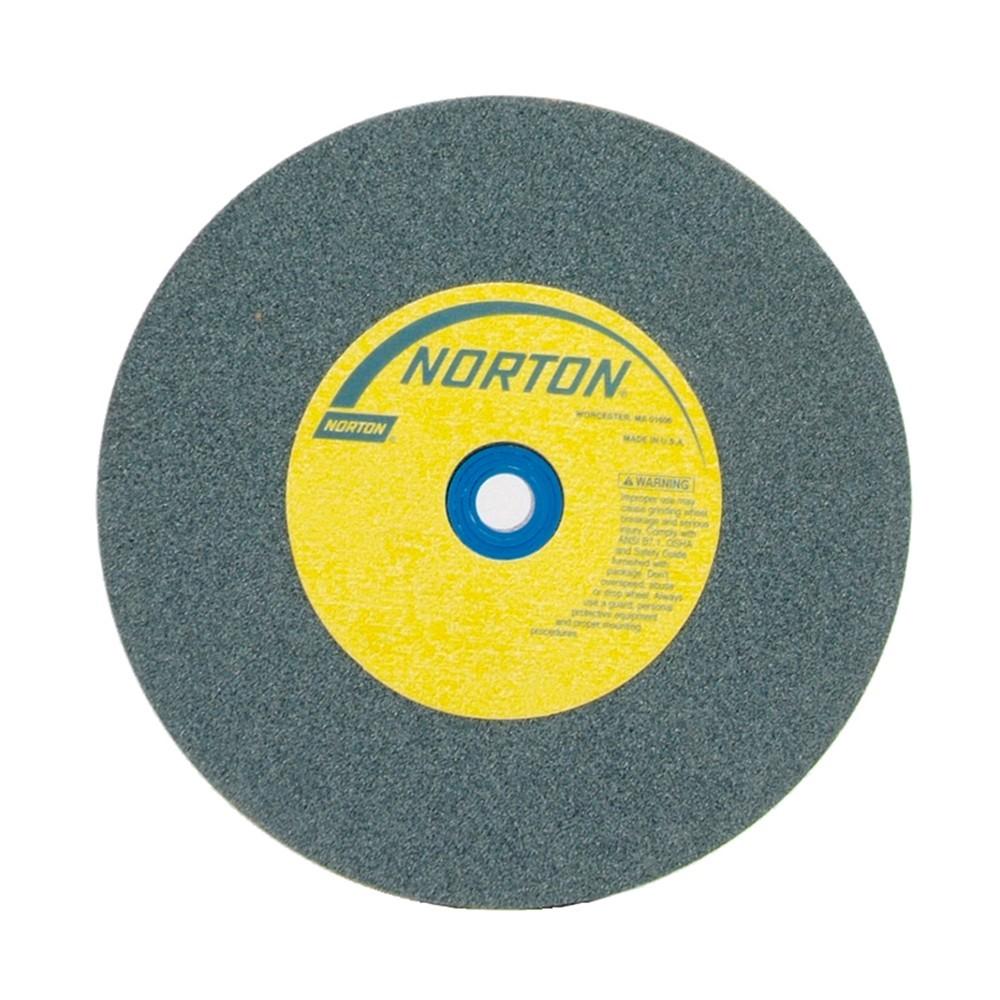

Norton 662532-63359 Bench Pedestal Grinding Wheel 12x2x1-1/4

Product Description

The NORTON 662532-63359 is a Type 1 bench and pedestal grinding wheel designed for sharpening, deburring, and shaping non-metallic materials. Made from silicon carbide abrasive in a green formulation, this wheel is suited for grinding carbide tooling, ceramics, stone, and similar hard non-ferrous or non-metallic workpieces. It measures 12 inches in diameter, 2 inches wide, with a 1-1/4 inch arbor bore, and is rated to a maximum operating speed of 2070 RPM. Medium grit provides a balance between material removal rate and surface finish quality. This wheel is installed and used by tool room technicians, maintenance machinists, and trade professionals who work with bench grinders or pedestal grinder units.

This wheel is intended for use on stationary bench or pedestal grinders in shop, maintenance, and trade environments. Typical applications include dressing carbide tool bits, shaping masonry or ceramic components, and surface preparation on non-metallic workpieces. It is a standard Type 1 flat wheel profile, making it compatible with conventional bench and pedestal grinder arbor mounts of the appropriate bore size. Medium grit makes it a practical choice for general-purpose stock removal where fine finishing is not the primary objective.

Key Features

• Silicon carbide abrasive (green) formulated for non-metallic and carbide materials
• Type 1 flat wheel profile for use on standard bench and pedestal grinders
• 12 inch diameter with 2 inch face width and 1-1/4 inch arbor bore
• Medium grit for general-purpose stock removal and shaping
• Maximum operating speed of 2070 RPM

Compatibility

Designed as a Type 1 replacement grinding wheel for bench and pedestal grinders accepting a 1-1/4 inch arbor bore and rated for use at or below 2070 RPM. Suited for grinding carbide, ceramics, stone, and other non-metallic materials.

Installation Notes

Installation should be performed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation, and perform a ring test to confirm integrity. Never exceed the maximum RPM rating stamped on the wheel, and ensure the arbor flanges and blotters are properly seated before operation.

Technical Specifications

• Wheel Type: Type 1 (Straight)
• Abrasive Material: Silicon Carbide (Green)
• Grit Grade: Medium
• Diameter: 12 inches
• Width: 2 inches
• Arbor Bore: 1-1/4 inches
• Maximum Operating Speed: 2070 RPM
• Application: Non-Metallic Materials
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662532-63359
