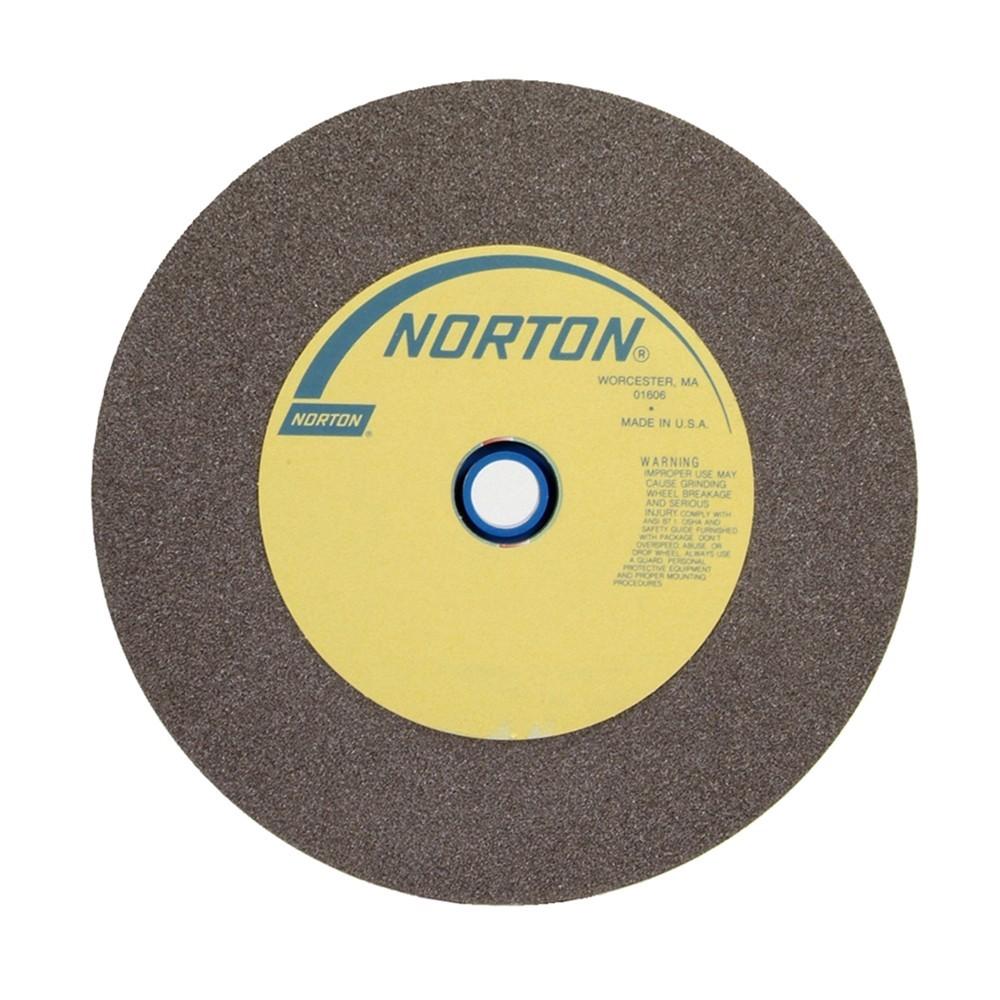

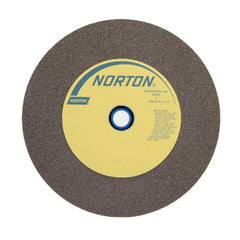

Norton 662532-63056 Type 1 Bench Pedestal Grinding Wheel

Product Description

The NORTON 662532-63056 is a Type 1 straight bench and pedestal grinding wheel designed for general-purpose metal grinding and sharpening. Built with standard aluminum oxide abrasive in a medium grit, this wheel delivers consistent stock removal on ferrous metals in shop environments. It measures 12 x 2 x 1.5 inches and carries a maximum operating speed of 2070 RPM. The gray color is standard for aluminum oxide general-purpose wheels. Machinists, tool-and-die workers, maintenance technicians, and fabricators use this wheel for deburring, sharpening, and surface conditioning tasks on bench grinders and pedestal grinders.

This wheel is suited for stationary bench grinder and pedestal grinder setups in machine shops, maintenance facilities, and fabrication environments. It is used on ferrous metals including carbon steel and cast iron for material removal and tool reconditioning. The 1.5-inch arbor bore accommodates standard industrial pedestal grinder spindles. Medium grit makes it appropriate for general shaping and sharpening where a balance between cut rate and surface finish is needed.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder mounting
• Aluminum oxide abrasive construction for general-purpose metal grinding
• Medium grit for balanced stock removal and surface finish
• Maximum operating speed of 2070 RPM
• 12 x 2 x 1.5 inch dimensions for large-diameter grinder applications
• Gray color standard for aluminum oxide general-purpose grade

Compatibility

Designed as a general-purpose replacement or serviceable wheel for standard bench grinders and pedestal grinders accepting a 12-inch diameter Type 1 straight wheel with a 1.5-inch arbor bore.

Installation Notes

Wheel mounting and dressing must be performed by a qualified technician following ANSI B7.1 safety standards for abrasive wheel use. Always power down and de-energize the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips using the ring test before installation, and never exceed the rated maximum RPM of 2070. Ensure the wheel blotter, flanges, and guards are correctly installed before returning the machine to service.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Aluminum Oxide
• Grit Grade: Medium
• Color: Gray
• Wheel Diameter: 12 inches
• Wheel Width: 2 inches
• Arbor Bore: 1.5 inches
• Maximum Operating Speed: 2070 RPM
• Application: General Purpose Metal Grinding
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662532-63056
