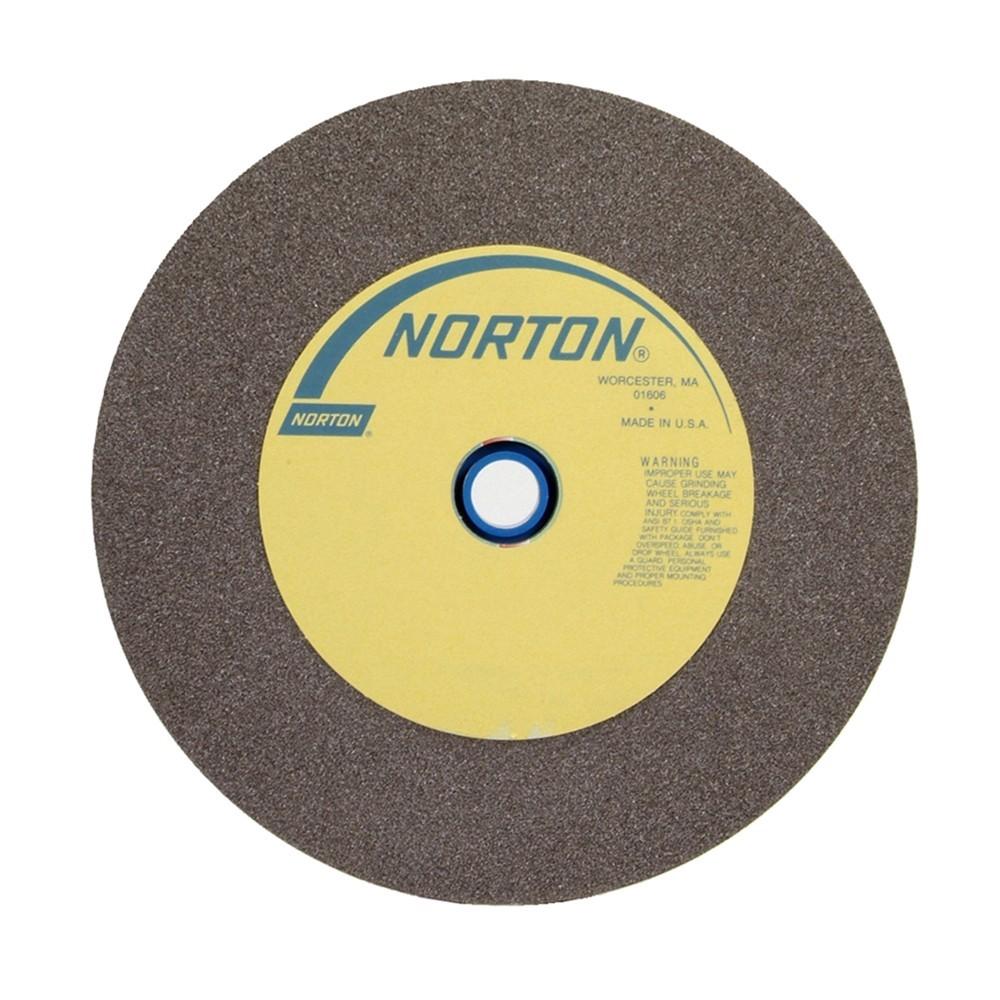

Norton 662532-63054 Type 1 Bench Pedestal Grinding Wheel

Product Description

The NORTON 662532-63054 is a Type 1 flat bench and pedestal grinding wheel designed for general-purpose metal grinding and stock removal. Built with standard aluminum oxide abrasive grain, this wheel delivers consistent cutting action on ferrous metals including steel and iron. At 12 inches in diameter, 2 inches wide, and 1.5 inches thick with a coarse grit rating, it is suited for aggressive material removal on bench grinders and pedestal grinder stands. The maximum rated speed is 2070 RPM. Licensed HVAC, industrial maintenance, and metal fabrication shops use this wheel for tool dressing, deburring, and sharpening operations.

This grinding wheel fits standard bench grinders and pedestal grinders used in industrial maintenance, fabrication shops, machine shops, and trade service environments. The coarse grit aluminum oxide formulation is optimized for fast stock removal on carbon steel, alloy steel, and general ferrous metal workpieces. It is a straightforward drop-in replacement for worn or glazed grinding wheels on compatible arbor-bore machines requiring a 1.5-inch bore diameter.

Key Features

• Type 1 flat wheel geometry for standard bench and pedestal grinder mounting
• Aluminum oxide abrasive grain rated for general-purpose ferrous metal grinding
• Coarse grit for aggressive stock removal and fast material cutting
• 12-inch diameter x 2-inch wide x 1.5-inch bore for compatibility with heavy-duty pedestal grinders
• 2070 RPM maximum rated speed — do not exceed this value in operation
• Standard gray wheel color indicates general-purpose aluminum oxide bond

Compatibility

Designed as an OEM-style replacement grinding wheel for bench grinders and pedestal grinders that accept a Type 1 flat wheel with a 1.5-inch arbor bore and a minimum 12-inch wheel capacity rated at or above 2070 RPM.

Installation Notes

Grinding wheel installation and dressing should be performed by qualified personnel following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Before mounting, power down and lock out the grinder completely. Inspect the wheel for cracks or chips using the ring test before installation, and never exceed the 2070 RPM maximum rated speed marked on the wheel. Eye protection and a properly adjusted work rest and spark guard are required during operation.

Technical Specifications

• Wheel Type: Type 1 (Flat)
• Abrasive Material: Aluminum Oxide
• Color: Gray
• Grit: Coarse
• Diameter: 12 inches
• Width: 2 inches
• Arbor Bore: 1.5 inches
• Maximum RPM: 2070
• Application: General Purpose Metal Grinding
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662532-63054
