Norton 66253149186 Cutoff Wheel 10 Inches 60 Grit

Product Description

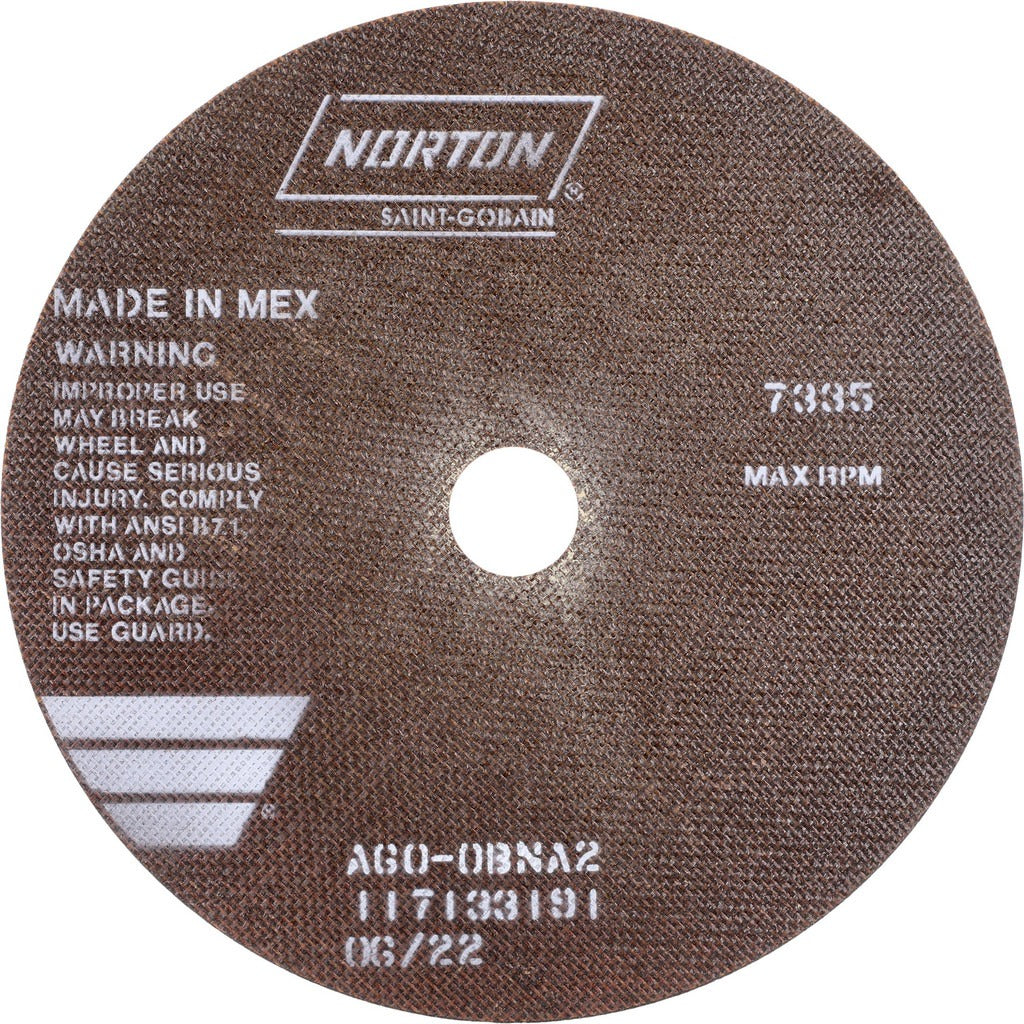

The NORTON 66253149186 is a Type 1 (01/41) aluminum oxide cutoff wheel built for stationary grinder applications in metal cutting. It measures 10 inches in diameter with a 0.0600-inch thickness and a 1-1/4-inch arbor hole. The wheel carries a 60-grit designation and a resinoid bond with an O hardness rating. Sides are reinforced for added durability under lateral stress. It is rated to a maximum of 6,110 RPM and carries the specification code A60-OBNA2. This wheel is suited for grinding and cutoff work on steel and is installed by metalworkers, fabricators, and maintenance trades using stationary bench or pedestal grinders.

This cutoff wheel is designed for use on stationary grinders in industrial, fabrication, and maintenance settings. Its primary application is cutting and grinding steel stock. The Type 1 flat-profile geometry is standard for straight cutoff operations on bench grinders and pedestal grinders. The aluminum oxide abrasive and resinoid bond handle repeated passes on ferrous metals without excessive loading. The brown color indicates the standard aluminum oxide grain composition consistent with the A60-OBNA2 spec.

Key Features

• 10-inch diameter with 1-1/4-inch arbor hole for stationary grinder mounting
• 0.0600-inch thin-kerf profile reduces material loss per cut
• 60-grit aluminum oxide abrasive with resinoid bond for controlled stock removal on steel
• Both sides reinforced for resistance to lateral forces during use
• Type 1 (01/41) flat wheel geometry for straight cutoff operations
• 6,110 RPM maximum speed rating

Compatibility

Designed for use with stationary grinders requiring a 10-inch Type 1 cutoff wheel with a 1-1/4-inch arbor hole. Intended application is steel cutting and grinding.

Installation Notes

This wheel is mounted and serviced by qualified metalworkers or maintenance personnel on stationary bench or pedestal grinders. Always power down and lockout/tagout the grinder before mounting or removing the wheel. Inspect the wheel for cracks or chips before each use and never exceed the 6,110 RPM maximum speed rating marked on the wheel. Wear appropriate personal protective equipment including a face shield during operation.
