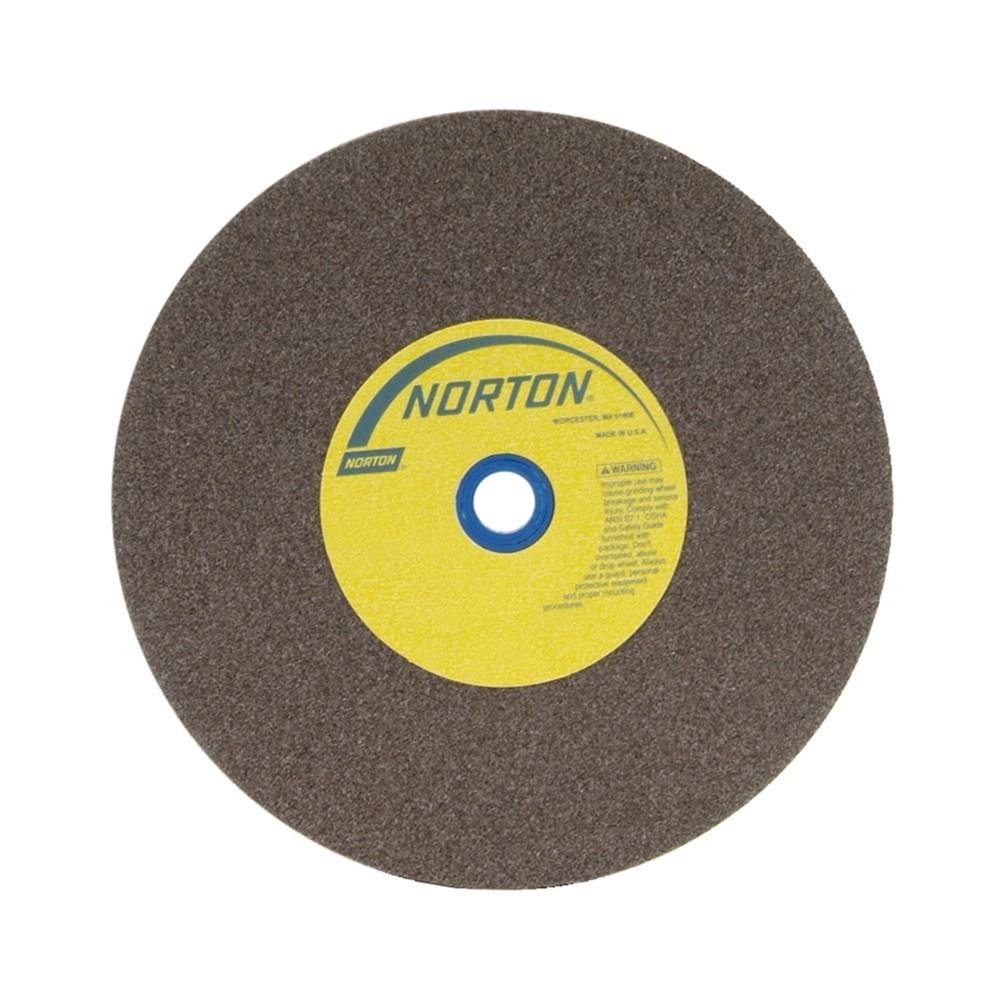

Norton 662531-61395 Bench Pedestal Grinding Wheel 10in

Product Description

The NORTON 662531-61395 is a Type 1 bench and pedestal grinding wheel designed for use on stationary bench grinders and pedestal grinders in professional shop environments. Constructed from aluminum oxide abrasive, this wheel measures 10 inches in diameter, 1.25 inches wide, with a 1.25-inch arbor bore. The medium grit rating makes it well-suited for general-purpose stock removal, tool sharpening, and edge dressing on ferrous metals. Licensed tradespeople, machinists, and maintenance technicians rely on this style of wheel for everyday grinding tasks where consistent cut rate and wheel life are required.

This grinding wheel fits standard 10-inch bench and pedestal grinder units found in maintenance shops, fabrication facilities, tool rooms, and trade training environments. The Type 1 straight-wheel profile is the most common configuration for bench grinder applications, offering broad contact area across a range of workpiece geometries. Medium grit provides a balance between material removal rate and surface finish, making it a practical choice for sharpening drill bits, chisels, tool steel, and general shop hardware.

Key Features

• Type 1 straight-wheel profile for standard bench and pedestal grinder mounting
• Aluminum oxide abrasive construction for grinding ferrous metals and high-speed steel
• 10-inch diameter with 1.25-inch wide face and 1.25-inch arbor bore
• Medium grit rating balances stock removal speed with resultant surface finish
• Gemini series formulation for consistent abrasive performance across the wheel life
• Sold individually; packaged two wheels per case

Compatibility

Designed as an OEM-style replacement or standard service wheel for 10-inch bench grinders and pedestal grinders accepting a 1.25-inch arbor bore and Type 1 straight-wheel profile.

Installation Notes

Bench and pedestal grinding wheels must be installed by a qualified technician following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always power down and lockout the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips prior to installation and perform a ring test; never mount a wheel that produces a dull thud. Ensure the arbor speed rating of the wheel meets or exceeds the grinder spindle RPM before operating.

Technical Specifications

• Wheel Type: Type 1 Straight
• Series: Gemini
• Material: Aluminum Oxide
• Diameter: 10 inches
• Width: 1.25 inches
• Arbor Bore: 1.25 inches
• Grit: Medium
• Weight: 10 pounds
• Sold As: Each (2 per case)

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662531-61395
