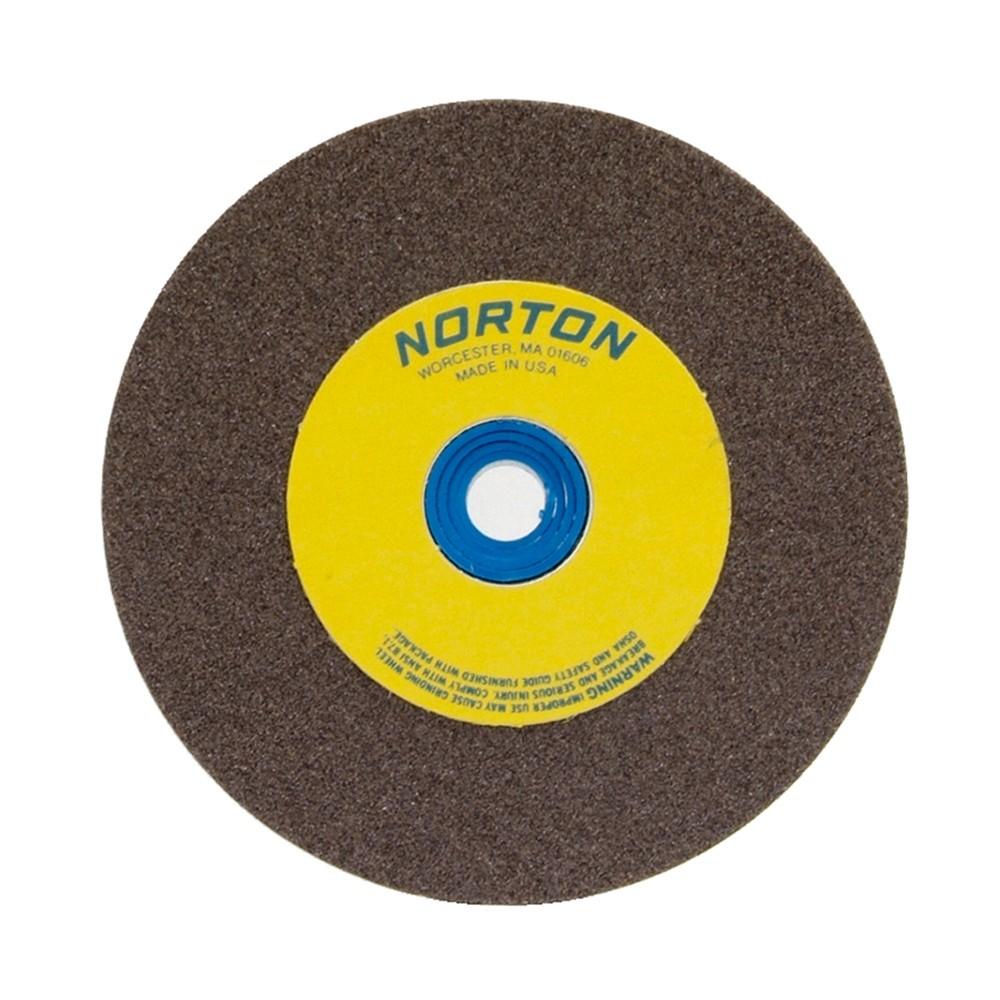

Norton 662531-60350 Bench Grinding Wheel 10in 100/120 Grit

Product Description

The NORTON 662531-60350 is a Type 1 bench and pedestal grinding wheel designed for precision material removal on carbon steel workpieces. Measuring 10 inches in diameter with a 1-inch thickness and a 1-1/4-inch arbor bore, this wheel features an aluminum oxide abrasive bonded with resin for consistent stock removal and a long service life. The dual 100/120 grit rating puts it in the fine grade range, making it well-suited for finishing passes and light deburring rather than aggressive shaping. Rated to a maximum of 2,485 RPM, it ships with three arbor bushings to fit 3/4-inch, 7/8-inch, and 1-inch spindles, covering most standard bench grinder configurations right out of the box.

This wheel is a standard fit for bench and pedestal grinder setups found in machine shops, maintenance facilities, and fabrication environments. It performs best on carbon steel applications where a fine surface finish is the goal. The included bushing set means it can adapt to a range of bench grinder spindle sizes without requiring separate hardware, making it practical for shops running multiple machine configurations.

Key Features

• Type 1 flat wheel profile for use on bench and pedestal grinders
• Aluminum oxide abrasive with resin bond for consistent, controlled cutting action
• 100/120 grit fine grade — suited for finishing and light deburring on carbon steel
• Includes 3/4-inch, 7/8-inch, and 1-inch arbor bushings for broad spindle compatibility
• Maximum operating speed of 2,485 RPM
• Gray color for easy visual identification of wear and dressing status

Compatibility

Designed for use on carbon steel with bench and pedestal grinder configurations. Includes arbor bushings for 3/4-inch, 7/8-inch, and 1-inch spindle sizes to accommodate a wide range of standard bench grinders.

Installation Notes

Bench grinding wheel installation should be performed by a qualified operator following ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels. Before mounting, power down and lock out the grinder. Perform a ring test on the wheel to check for cracks before installation, and always ensure the machine RPM rating meets or exceeds the wheel maximum RPM. Use the appropriate arbor bushing for a proper fit — never force a wheel onto a spindle.

Technical Specifications

• Wheel Type: Type 1 Bench/Pedestal
• Diameter: 10 inches
• Thickness: 1 inch
• Arbor Size: 1-1/4 inches
• Abrasive Material: Aluminum Oxide
• Bond Type: Resin
• Grit: 100/120
• Grade: Fine
• Maximum RPM: 2,485
• Color: Gray
• Included Bushings: 3/4 inch, 7/8 inch, 1 inch
• Weight: 1 pound

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662531-60350
