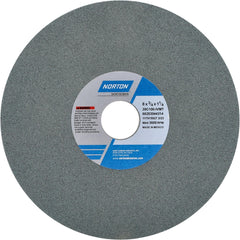

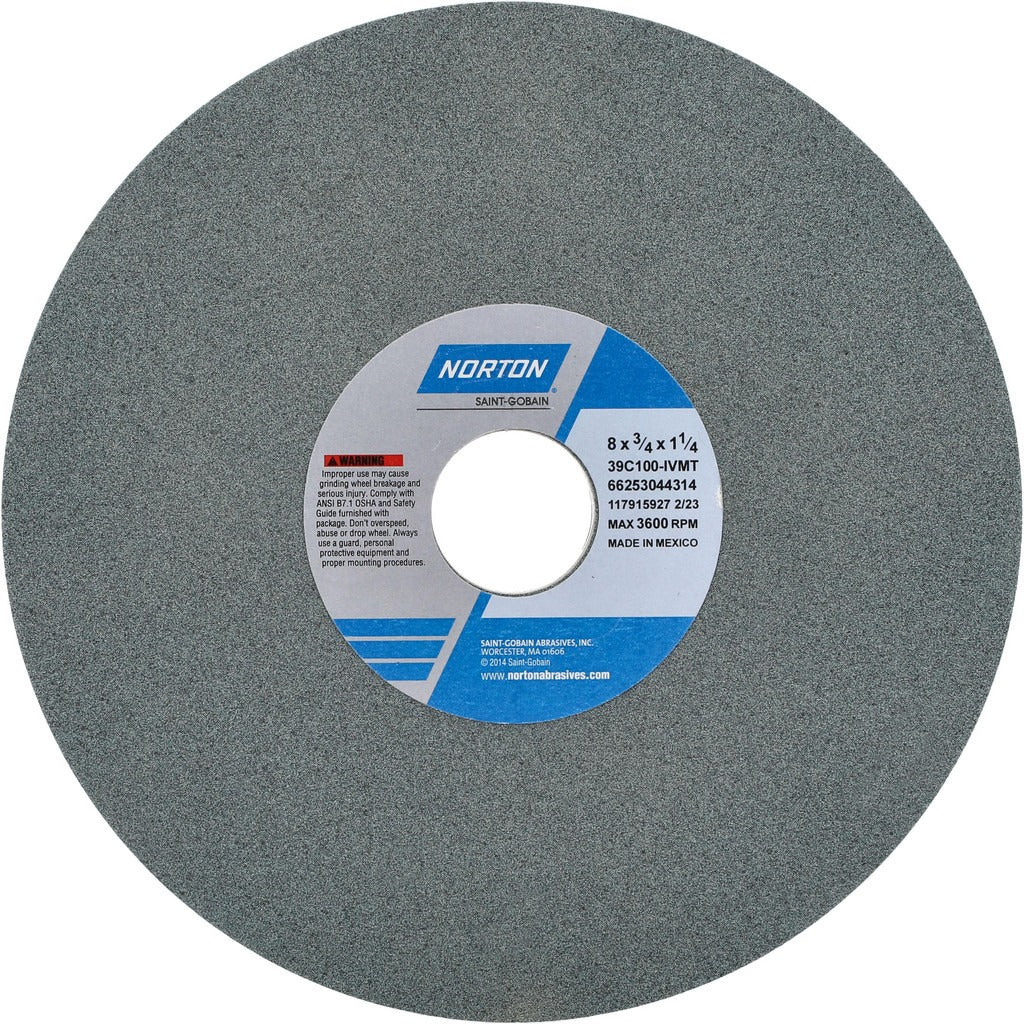

Norton 66253044314 Surface Grinding Wheel 8in 100 Grit

Product Description

The NORTON 66253044314 is a Type 1 surface grinding wheel engineered for precision stock removal on a wide range of metals and hard materials. Built with silicon carbide abrasive and a vitrified bond, this wheel delivers consistent cutting action and thermal resistance during wet grinding operations. At 8 inches in diameter, 3/4 inches thick, and bored to a 1-1/4 inches mounting hole, it fits standard surface grinder spindles without modification. The 100 grit, fine grade designation produces smooth surface finishes while the I hardness code and medium hardness rating keep the wheel from loading prematurely on harder workpiece materials. Rated to 3600 RPM maximum. Weight is 2.67 pounds.

This wheel is suited for wet grinding applications on 300 Series stainless steel, titanium, aluminum, brass, bronze, copper, gray iron, masonry, and natural stone. It is commonly installed on surface grinders and cylindrical grinders, as well as CNC cutting tool machines. The non-porous, non-tapered, non-recessed Type 1 flat wheel profile makes it a straightforward replacement for production shop and tool room environments where fine-finish grinding is a routine operation. The 39C series silicon carbide formulation is a recognized choice for non-ferrous metals, cast iron, and stone materials.

Key Features

• Silicon carbide abrasive with vitrified bond for consistent cut rate and durability
• 100 grit fine grade delivers smooth surface finishes on demanding materials
• I hardness code (medium) resists loading on harder workpiece alloys
• Rated to 3600 RPM maximum for use on standard surface and cylindrical grinders
• Wet operation compatible for controlled grinding temperatures
• Non-porous, non-tapered, no-recess Type 1 flat wheel profile for straightforward spindle mounting

Compatibility

Designed for use with surface grinders, cylindrical grinders, and CNC cutting tool machines. Suitable for grinding 300 Series stainless steel, titanium, aluminum, brass, bronze, copper, gray iron, masonry, and natural stone. Part of the NORTON 39C Type 1 series.

Installation Notes

Grinding wheel installation and dressing should be performed by a qualified machinist or tool room technician familiar with ANSI B7.1 wheel mounting standards. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before installation and perform a ring test; never mount a damaged wheel. Confirm that spindle speed does not exceed the 3600 RPM maximum rating stamped on the wheel.
