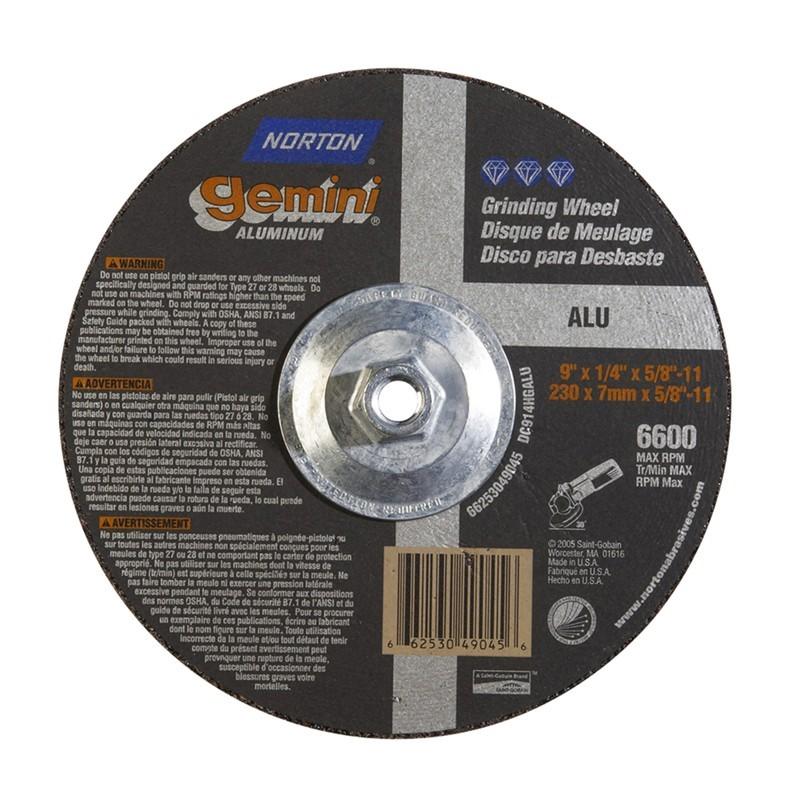

Norton 662530-49045 Type 27 Grinding Wheel 9in Aluminum

Product Description

The NORTON 662530-49045 is a Type 27 depressed-center grinding wheel engineered for aggressive material removal on aluminum. Built with Gemini Aluminum Oxide abrasive, this wheel delivers consistent cut rate and long service life on non-ferrous stock. The 9-inch diameter and 1/4-inch thickness make it well suited to heavy grinding passes, while the 5/8-11 threaded arbor provides a secure mount on standard angle grinders. Maximum operating speed is 6600 RPM. Metal fabricators, welders, and pipefitters routinely reach for this wheel when removing welds, smoothing rough cuts, or reshaping aluminum workpieces.

This grinding wheel is designed for use on aluminum and other non-ferrous materials in fabrication shops, maintenance facilities, and field service environments. The Type 27 depressed-center profile positions the grinding face slightly below the flange plane, improving clearance and operator control during flat and beveled surface work. It mounts on angle grinders fitted with a standard 5/8-11 threaded spindle.

Key Features

• Gemini Aluminum Oxide abrasive optimized for grinding aluminum and non-ferrous metals
• Type 27 depressed-center design improves surface access and operator visibility
• 9-inch diameter with 1/4-inch thickness for high stock removal per pass
• 5/8-11 threaded arbor fits standard angle grinder spindles
• 6600 RPM maximum rated speed

Compatibility

Designed for use with angle grinders equipped with a 5/8-11 threaded spindle and rated for wheels up to 9 inches in diameter at or below 6600 RPM.

Installation Notes

Installation and wheel changes must be performed by a qualified operator following ANSI B7.1 safety standards and the grinder manufacturer guidelines. Inspect the wheel for cracks or damage before mounting and never exceed the maximum rated RPM marked on the wheel. Secure the locking nut firmly and confirm the wheel guard is in place before starting the tool. Always wear appropriate PPE including face shield and gloves when operating grinding equipment.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Gemini Aluminum Oxide
• Application Material: Aluminum and non-ferrous metals
• Diameter: 9 inches
• Thickness: 1/4 inch
• Arbor Size: 5/8-11 threaded
• Maximum RPM: 6600
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662530-49045
