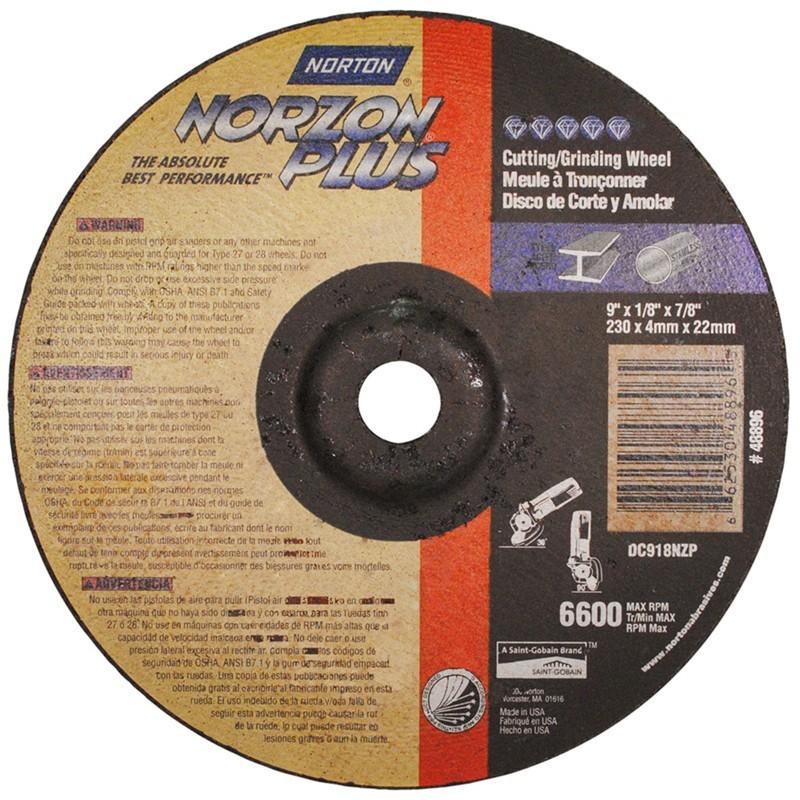

Norton 662530-48896 Type 27 Grinding Wheel 9x1/8x7/8

Product Description

The NORTON 662530-48896 is a Type 27 depressed center grinding wheel designed for light grinding and cutting on metal surfaces. Part of the NorZon Plus product line, this wheel measures 9 inches in diameter, 1/8 inch in thickness, and has a 7/8 inch arbor bore. It is rated for a maximum operating speed of 6600 RPM. The depressed center profile allows the wheel to be used at a low angle to the work surface, improving operator control and reducing interference during use. Licensed tradespeople and shop professionals use this wheel for deburring, blending, and light material removal on structural steel, pipe, and fabricated metal components.

This grinding wheel is suited for use on metal in both field and shop environments. Common applications include weld cleanup, edge preparation, and light surface grinding on ferrous metals. The Type 27 configuration is standard for angle grinder use and is appropriate for both light production work and maintenance tasks. It is a fit for fabricators, pipefitters, ironworkers, and general metalworking trades requiring controlled, lower-stock-removal grinding passes.

Key Features

• Type 27 depressed center design allows low-angle grinding and improved sightlines on the work surface
• NorZon Plus abrasive formulation engineered for metal grinding and cutting applications
• 6600 RPM maximum operating speed rating
• 9 inch diameter with 1/8 inch thickness for light material removal and cutting tasks
• 7/8 inch arbor bore fits standard angle grinder spindles

Compatibility

Designed as a replacement or consumable grinding wheel for use with angle grinders accepting a 7/8 inch arbor and rated for wheels operating at or below 6600 RPM on metal workpieces.

Installation Notes

Mounting and use of grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards for the use, care, and protection of abrasive wheels. Always verify that the grinder's rated RPM meets or exceeds the wheel's maximum RPM before mounting. Inspect the wheel for cracks or damage before each use and never operate a damaged wheel. Use the appropriate guard and personal protective equipment as required by the tool manufacturer and applicable safety regulations.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Application: Light Grinding and Cutting
• Material Compatibility: Metal
• Abrasive Line: NorZon Plus
• Diameter: 9 inches
• Thickness: 1/8 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 6600
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662530-48896
