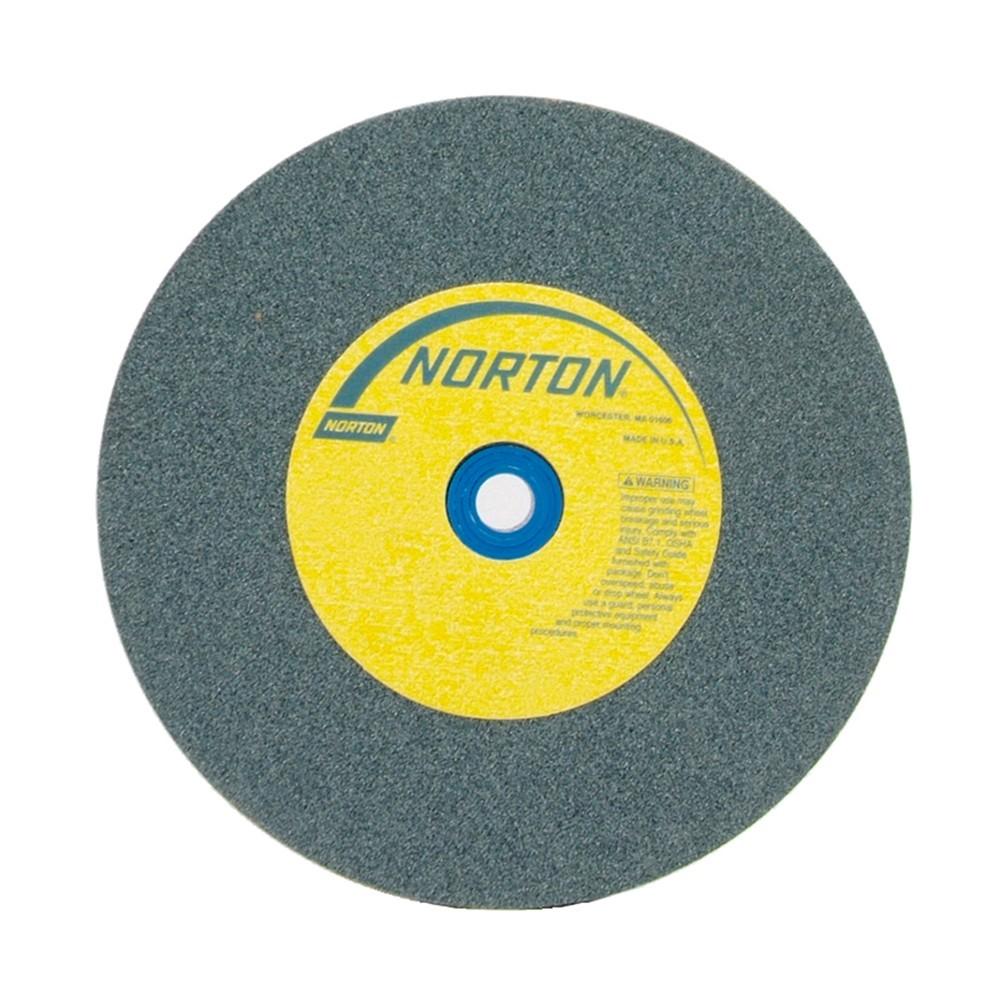

Norton 662530-44535 Bench Pedestal Wheel 8x1x1 Extra Fine

Product Description

The NORTON 662530-44535 is a Type 1 silicon carbide bench and pedestal grinding wheel designed for sharpening, shaping, and finishing non-metallic materials. It measures 8 inches in diameter, 1 inch wide, with a 1-inch arbor bore, and carries an extra fine grit rating for precision surface work. Rated at a maximum of 3,600 RPM, this wheel is engineered for use on standard bench grinders and pedestal grinder stands found in trade and industrial shops. Licensed tradespeople and skilled craftspeople working with carbide tooling, ceramics, glass, and stone rely on this wheel for controlled material removal without the aggression of coarser grits.

This wheel is suited for bench and pedestal grinder applications in both shop and light industrial environments. The silicon carbide abrasive compound makes it the correct choice for non-metallic workpieces such as carbide tool blanks, masonry, ceramics, and similar hard, brittle materials. The green coloration identifies it as a silicon carbide formulation, which is the standard industry marker for this abrasive type. It is sold individually and is appropriate for professionals who require a fine finishing or honing pass on non-ferrous and non-metal workpieces.

Key Features

• Type 1 straight wheel profile for standard bench and pedestal grinder compatibility
• Silicon carbide abrasive formulated for non-metallic and carbide materials
• Extra fine grit for precision finishing and light material removal
• Maximum operating speed of 3,600 RPM
• 8-inch diameter with 1-inch width and 1-inch arbor bore
• Green color designation identifies silicon carbide composition

Compatibility

Designed as an OEM-style replacement or standard consumable for bench grinders and pedestal grinder stands that accept Type 1 straight wheels with an 8-inch diameter and 1-inch arbor bore.

Installation Notes

Grinding wheel installation and replacement should be performed by a qualified technician familiar with ANSI B7.1 safety standards for abrasive wheels. Always power down and lock out the grinder before removing or mounting a wheel. Inspect the wheel for cracks or chips before mounting and conduct a ring test per standard practice. Do not exceed the maximum RPM stamped on the wheel or listed by the grinder manufacturer.

Technical Specifications

• Wheel Type: Type 1 Straight
• Abrasive Material: Silicon Carbide
• Application: Non-Metal
• Grit: Extra Fine
• Diameter: 8 inches
• Width: 1 inch
• Arbor Bore: 1 inch
• Maximum RPM: 3,600
• Color: Green
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662530-44535
