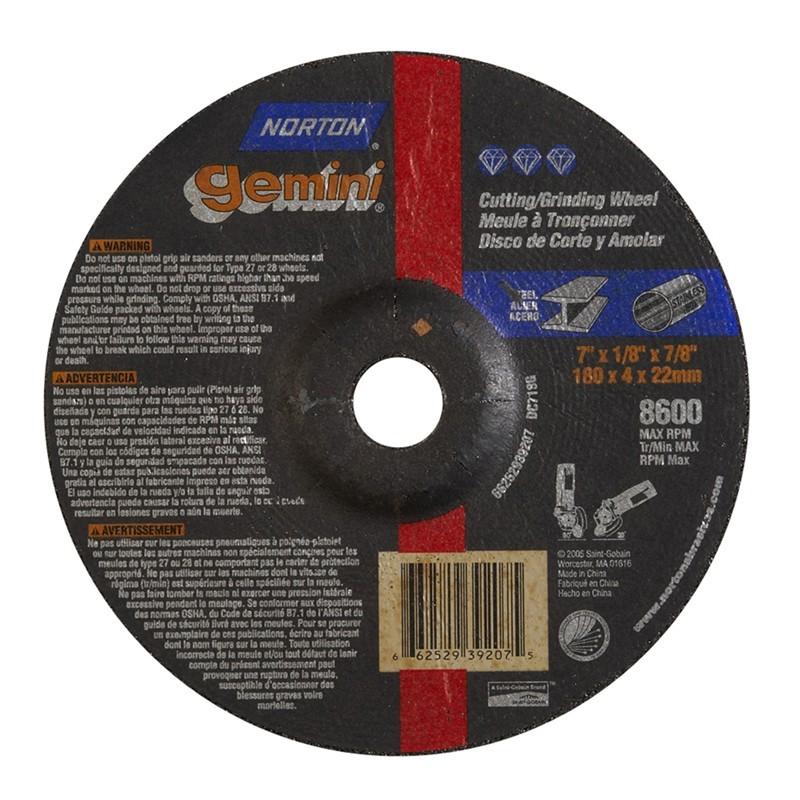

Norton 662529-39207 Type 27 Grinding Wheel 7 in Metal

Product Description

The NORTON 662529-39207 is a Type 27 depressed center grinding wheel engineered for metal grinding and stock removal in demanding fabrication and maintenance applications. Built with a Gemini Aluminum Oxide abrasive grain, this wheel delivers consistent cut rate and extended service life on ferrous metals. At 7 inches in diameter with a 1/8-inch thickness and a 7/8-inch arbor bore, it fits standard 7-inch angle grinders and is rated to a maximum of 8600 RPM. Licensed tradespeople and fabricators rely on this wheel for weld grinding, surface prep, and edge work where controlled material removal is required.

This grinding wheel is suited for use on mild steel, structural steel, and other ferrous metals in residential, commercial, and industrial settings. Typical applications include weld bead removal, surface blending, and deburring on flat or slightly contoured workpieces. The depressed center profile allows the disc to sit at a low angle to the workpiece, enabling flush and controlled grinding passes. It is commonly used by ironworkers, pipefitters, millwrights, and general fabricators working with angle grinders in shop or field conditions.

Key Features

• Gemini Aluminum Oxide abrasive grain for consistent cut rate on ferrous metals
• Type 27 depressed center profile for flush grinding at low angles
• 7-inch diameter with 1/8-inch thickness for aggressive stock removal
• 7/8-inch arbor bore fits standard angle grinder spindles
• 8600 RPM maximum operating speed rating

Compatibility

Designed as an OEM-style replacement grinding wheel for use with standard 7-inch angle grinders accepting a 7/8-inch arbor bore spindle.

Installation Notes

Mounting and wheel changes must be performed by qualified personnel following ANSI B7.1 safe use standards for abrasive wheels. Always verify the grinder guard is in place and inspect the wheel for cracks or damage before mounting. Confirm the tool spindle speed does not exceed the 8600 RPM maximum rating stamped on the wheel. Wear appropriate PPE including face shield, gloves, and hearing protection during operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Gemini Aluminum Oxide
• Application: Metal Grinding
• Diameter: 7 inches
• Thickness: 1/8 inches
• Arbor Bore: 7/8 inches
• Maximum RPM: 8600
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662529-39207
