Norton 662529-17880 Type 27 Grinding Wheel 7x1/4x7/8

Product Description

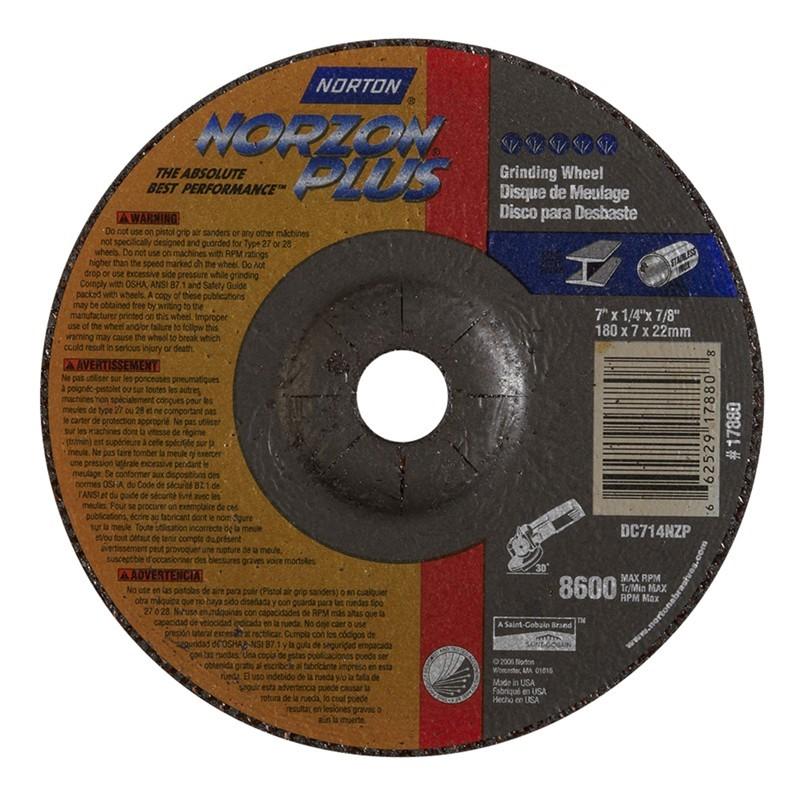

The NORTON 662529-17880 is a Type 27 depressed center grinding wheel engineered for aggressive metal grinding applications. Built under the NorZon Plus product line, this wheel measures 7 inches in diameter, 1/4 inch thick, and accepts a 7/8-inch arbor bore. It is rated to a maximum of 8600 RPM, making it compatible with standard 7-inch angle grinders used daily in fabrication, construction, and maintenance trades. Licensed tradespeople and skilled technicians reach for this wheel when removing weld spatter, grinding down welds, or preparing metal surfaces for further finishing work.

This grinding wheel is suited for use on ferrous metals including steel and iron. Its depressed center Type 27 profile allows the operator to work at a low grinding angle, keeping the wheel face and disc edge in controlled contact with the workpiece. It is a common consumable in structural steel fabrication shops, pipefitting, general ironwork, and on-site metal preparation tasks where a reliable, consistent cut rate is required across repeated passes.

Key Features

• Type 27 depressed center profile allows low-angle metal grinding
• NorZon Plus abrasive construction for consistent stock removal on metal
• 7-inch diameter fits standard 7-inch angle grinders
• 1/4-inch thickness provides durability for heavy grinding work
• 7/8-inch arbor bore for direct spindle mounting on compatible grinders
• 8600 RPM maximum speed rating for safe operation within grinder specifications

Compatibility

Designed as an OEM-style replacement or consumable grinding wheel for 7-inch angle grinders accepting a 7/8-inch arbor and rated at or below 8600 RPM. Intended for use on metal substrates.

Installation Notes

Grinding wheel installation and replacement should be performed by qualified personnel following ANSI B7.1 safety standards and the grinder manufacturer guidelines. Always power down and unplug or lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or chips before each use and never operate above the marked maximum RPM. Use the correct flange size and tighten the retaining nut securely without overtightening.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Product Line: NorZon Plus
• Application: Metal Grinding
• Diameter: 7 inches
• Thickness: 1/4 inch
• Arbor Bore: 7/8 inch
• Maximum RPM: 8600
• Unit of Measure: Each
• Minimum Order Quantity: 20
• UPC: 662529178808

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 662529-17880
