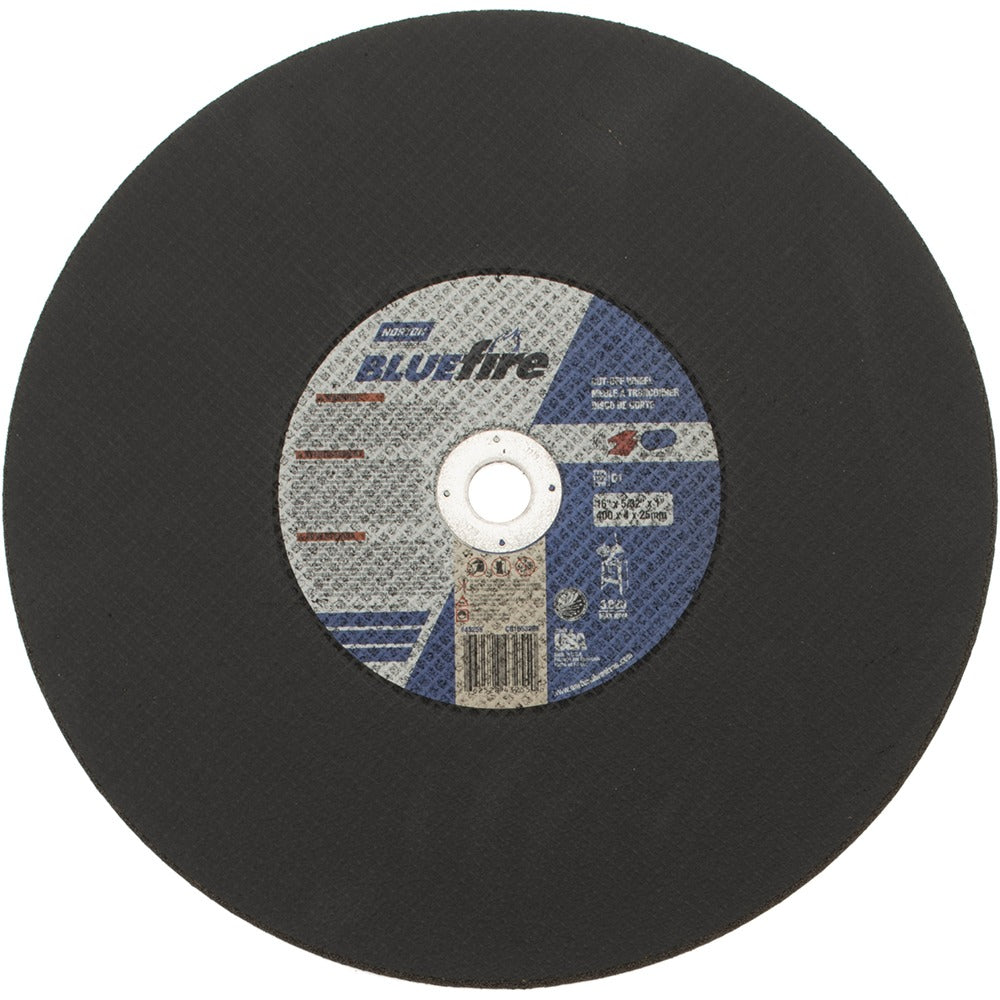

Norton 66252843255 Type 1 Cut-off Wheel 16 in Zirconia Alumina

Product Description

The NORTON 66252843255 is a Type 1 (01/41) flat cut-off wheel engineered for aggressive cutting on steel and stainless steel. It measures 16 inches in diameter with a 5/32-inch thickness and a 1-inch arbor hole. The abrasive material is Zirconia Alumina at 30 grit, bonded with a resinoid bond and reinforced on both sides for structural integrity at speed. Maximum operating speed is 3820 RPM. This wheel is rated for use with stationary tools and carries the BlueFire specification designation, indicating a high-performance abrasive formulation suited to demanding metal fabrication and cutting operations.

This cut-off wheel is designed for stationary tool setups in metal fabrication shops, maintenance facilities, and industrial environments. It handles both mild steel and stainless steel, making it a practical choice for structural steel cutting, pipe cutting, and plate work where a large-diameter wheel is required. At 16 inches in diameter it fits stationary cut-off saws configured for that wheel size. Installation and use are performed by machinists, fabricators, ironworkers, and maintenance technicians working with stationary abrasive equipment.

Key Features

• Zirconia Alumina abrasive at 30 grit delivers fast, aggressive cuts on ferrous and stainless steel
• Type 1 (01/41) flat wheel profile designed for straight, chop-style cuts on stationary saws
• Resinoid bond provides consistent abrasive release and thermal resistance during heavy cutting
• Both sides reinforced for added structural support at rated operating speeds
• 3820 RPM maximum speed rated for stationary tool use
• BlueFire specification for high-performance abrasive consistency across the wheel life

Compatibility

Designed for use with stationary cut-off tools that accept a 16-inch diameter, Type 1 wheel with a 1-inch arbor hole. Rated for cutting steel and stainless steel applications.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety per ANSI B7.1 standards. Before mounting, verify the machine spindle speed does not exceed the 3820 RPM maximum rating stamped on the wheel. Power down and lock out the tool before mounting or removing the wheel. Inspect the wheel for cracks or damage prior to each use and never use a wheel that has been dropped or shows visible defects.
