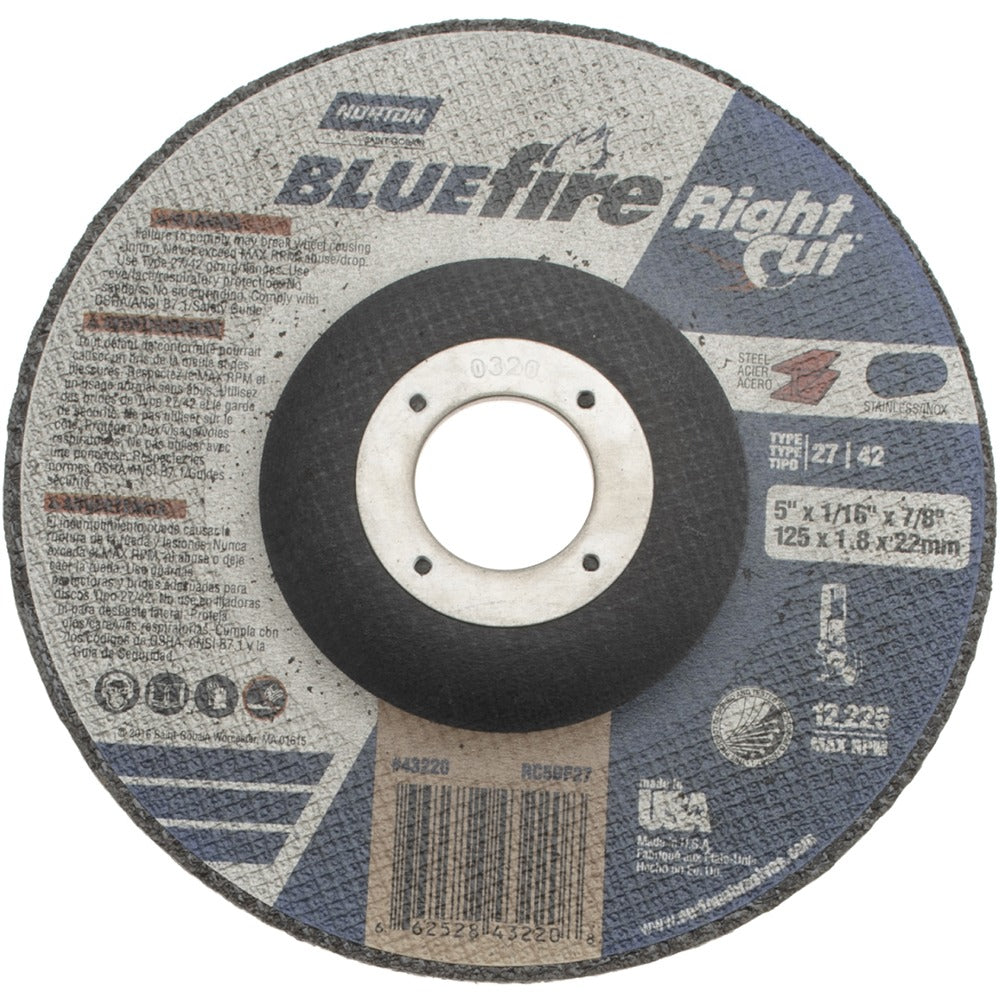

Norton 66252843220 Type 27 Depressed Center Wheel 5in

Product Description

The NORTON 66252843220 is a Type 27 depressed center wheel designed for aggressive cutting and grinding applications using an angle grinder. Built with a Zirconia Alumina abrasive at 24 grit medium grade, this wheel delivers fast, consistent material removal on metal and other hard surfaces. It measures 5 inches in diameter and 0.045 inches thick, with a 7/8-inch arbor hole for standard angle grinder spindle fitment. The resinoid bond holds abrasive grains firmly under load, and the wheel is rated to a maximum of 12,225 RPM. It weighs 0.129 pounds and ships in individual packaging.

This wheel is suited for metal fabrication, weld removal, surface preparation, and general grinding tasks in industrial, commercial, and contractor settings. The thin 0.045-inch profile makes it appropriate for both cutting and light grinding passes. It is compatible with standard angle grinders equipped with a 7/8-inch arbor. Installers and fabricators working on structural steel, sheet metal, and similar materials will find the 24-grit Zirconia Alumina construction well matched to high-stock-removal tasks.

Key Features

• Type 27 depressed center profile for grinding and cutting with angle grinders
• Zirconia Alumina abrasive, 24 grit medium grade for fast stock removal
• 0.045-inch thickness supports both cutting and surface grinding passes
• Resinoid bond with Q hardness code for durability under continuous load
• 12,225 maximum RPM rating for use with standard angle grinders
• 7/8-inch arbor hole fits common angle grinder spindles

Compatibility

Designed for use with angle grinders equipped with a 7/8-inch arbor connector. Also listed as compatible with Type 42 wheel applications per supplier specifications.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety. Always power down and disconnect the angle grinder before mounting or removing the wheel. Verify that the tool's rated RPM meets or exceeds the wheel's 12,225 RPM maximum before operation, and inspect the wheel for cracks or damage prior to each use. Follow ANSI B7.1 safety requirements for the use, care, and protection of abrasive wheels.
