Norton 66252842178 Type 27 Grinding Wheel 3x1/4x3/8

Product Description

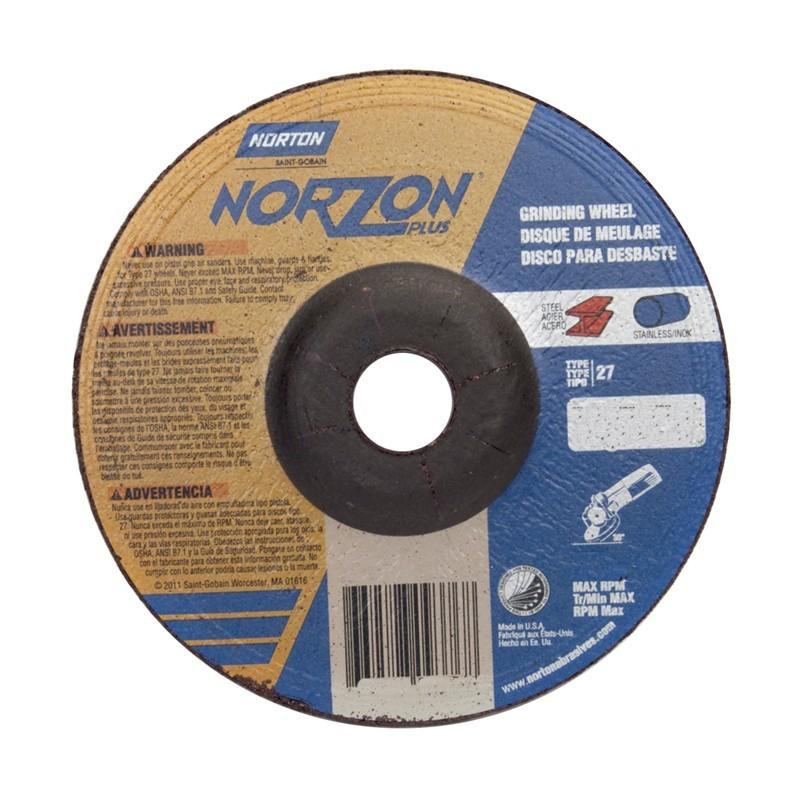

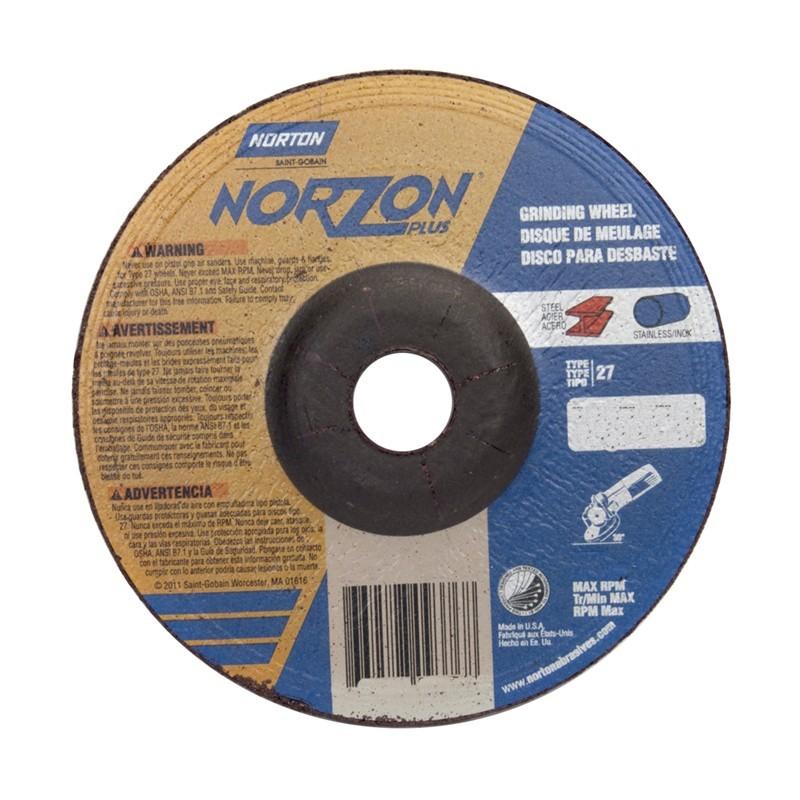

The NORTON 66252842178 is a Type 27 depressed center grinding wheel built for metal grinding applications. Part of the NorZon Plus line, this wheel measures 3 inches in diameter with a 1/4 inch thickness and a 3/8 inch arbor bore. It carries a maximum operating speed of 18000 RPM. The depressed center Type 27 profile allows the wheel to sit at an angle to the workpiece, giving the operator better clearance and control during aggressive material removal. Fabricators, welders, pipefitters, and metal trades professionals use this wheel for grinding welds, deburring, and surface prep on ferrous metals.

This grinding wheel is suited for use on angle grinders in metal fabrication shops, welding operations, structural steel work, and pipe fitting applications. The NorZon Plus abrasive formulation is engineered for metal grinding where consistent cut rate and wheel life are priorities. Sold in a case quantity of 25, it is appropriate for shops and contractors that consume abrasive wheels at a regular pace and want to maintain stock on hand.

Key Features

• Type 27 depressed center profile for improved operator clearance and grinding angle
• NorZon Plus abrasive formulation designed for metal grinding performance
• 3 inch diameter x 1/4 inch thickness x 3/8 inch arbor bore
• 18000 RPM maximum operating speed rating
• Suitable for ferrous metal grinding, weld blending, and surface preparation
• Case quantity of 25 wheels for shop and contractor supply needs

Compatibility

Designed as an OEM-style abrasive replacement for angle grinders accepting a 3/8 inch arbor and rated for Type 27 depressed center wheels at or above 18000 RPM.

Installation Notes

Mounting and replacement of grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards for abrasive wheel use. Always verify the angle grinder is rated at or above 18000 RPM and accepts a 3/8 inch arbor before mounting. Disconnect and de-energize the grinder before changing wheels, and confirm the wheel guard is properly installed and secured before operation. Inspect the wheel for cracks or damage before each use and never exceed the wheel's rated maximum RPM.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Line: NorZon Plus
• Application: Metal Grinding
• Diameter: 3 inches
• Thickness: 1/4 inch
• Arbor Bore: 3/8 inch
• Maximum RPM: 18000 RPM
• Case Quantity: 25 each
• Unit of Measure: Each

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 66252842178
