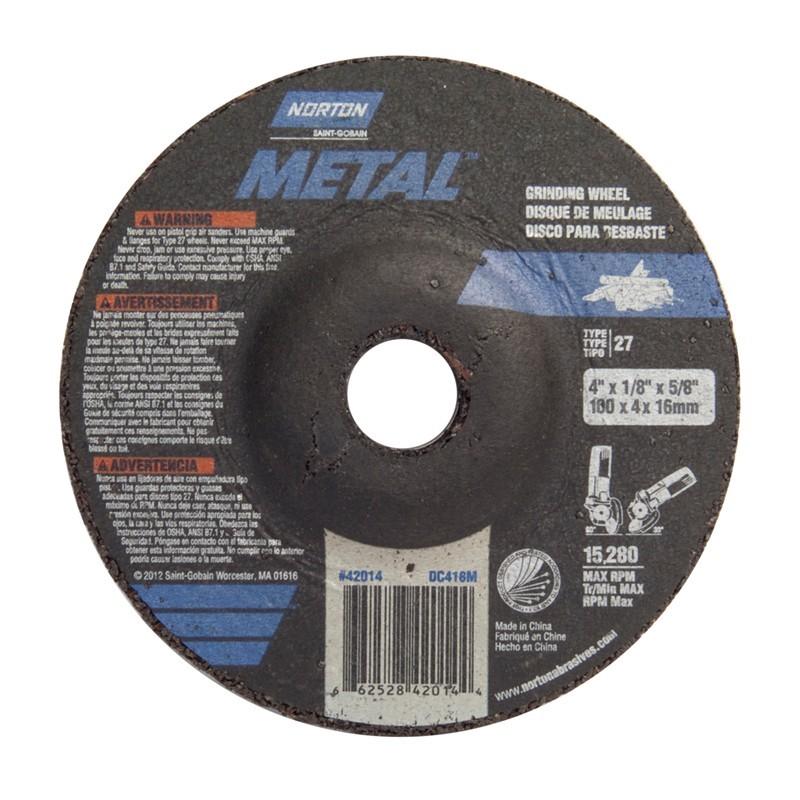

Norton 66252842014 Type 27 Grinding Wheel 4x1/8x5/8

Product Description

The NORTON 66252842014 is a Type 27 depressed center grinding wheel designed for metal grinding applications. Built with aluminum oxide abrasive, this wheel delivers consistent stock removal on ferrous metals including steel and iron. The 4-inch diameter, 1/8-inch thickness, and 5/8-inch arbor bore are standard dimensions for use with small to mid-size angle grinders common in fabrication, welding, and maintenance work. At 15,280 RPM maximum operating speed, it suits fast, controlled material removal in demanding job-site and shop environments. Licensed tradespeople and skilled fabricators rely on this wheel type for weld blending, surface prep, and deburring tasks.

This wheel is suited for residential and commercial metalworking applications where a compact 4-inch Type 27 profile is required. Typical install scenarios include post-weld cleanup, pipe fitting prep, and structural steel surface conditioning. The depressed center geometry keeps the mounting hardware clear of the workpiece, allowing a lower grinding angle and improved operator control. Sold individually, with a case quantity of 25 units available for shop and crew stocking.

Key Features

• Type 27 depressed center profile for low-angle grinding and improved clearance
• Aluminum oxide abrasive construction suited for ferrous metal grinding
• 4-inch diameter x 1/8-inch thickness x 5/8-inch arbor bore — standard angle grinder fitment
• 15,280 RPM maximum operating speed
• Sold per each; case quantity of 25 for volume stocking

Compatibility

Designed for use with small angle grinders accepting a 5/8-inch arbor and 4-inch grinding wheels. Suitable for grinding ferrous metals including mild steel, stainless steel, and cast iron.

Installation Notes

Mounting and use of abrasive grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards. Always inspect the wheel for cracks or damage before mounting, and never exceed the maximum RPM rating marked on the wheel. Ensure the grinder guard is in place and the tool is powered off and unplugged before changing wheels. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Material: Aluminum Oxide
• Application: Metal Grinding
• Diameter: 4 inches
• Thickness: 1/8 inches
• Arbor Bore: 5/8 inches
• Maximum RPM: 15,280
• Unit of Measure: Each
• Case Quantity: 25

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 66252842014
