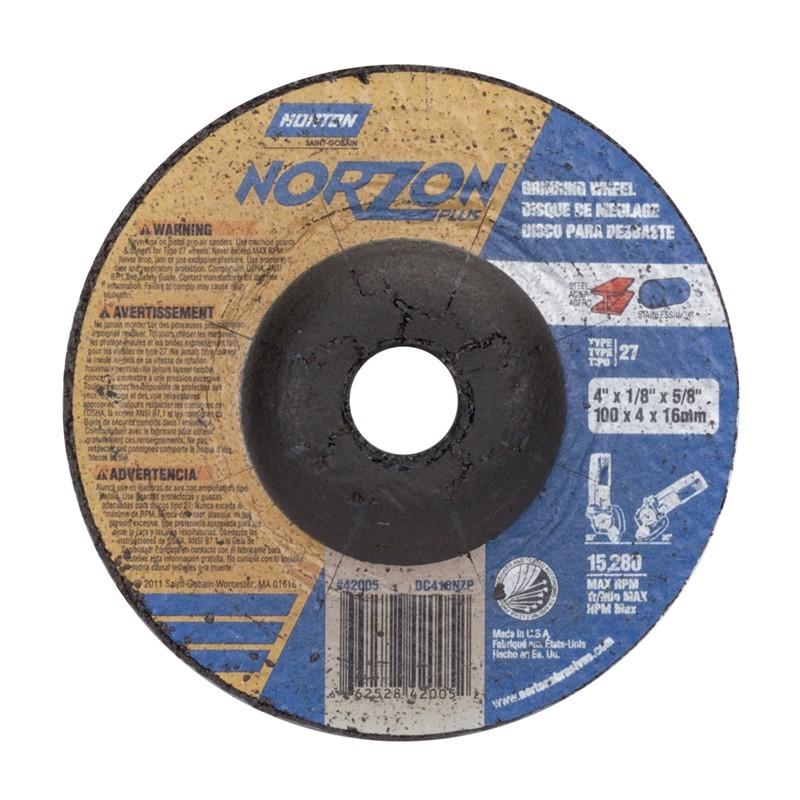

Norton 66252842005 Type 27 Grinding Wheel 4x1/8x5/8

Product Description

The NORTON 66252842005 is a Type 27 depressed center grinding wheel built for light grinding and cutting on metal. Part of the NorZon Plus abrasive line, it features a depressed center profile that keeps the grinding face at a consistent angle during use, reducing fatigue and improving control. The wheel measures 4 inches in diameter, 1/8 inch thick, and accepts a 5/8 inch arbor. At a maximum operating speed of 15,280 RPM, it suits angle grinders commonly used in fabrication, maintenance, and field metalwork. Licensed tradespeople and skilled metalworkers are the primary installers and users of this product.

This wheel is suited for light grinding and cutting tasks on metal surfaces in both shop and field environments. The Type 27 raised-hub design allows a low grinding angle, making it effective on flat stock, sheet metal, weld seams, and structural sections. It is sold individually and available in case quantities of 25 units, making it practical for stocking a service van or shop supply room. The NorZon Plus abrasive formulation is intended for consistent cut rate and extended wheel life under moderate load conditions.

Key Features

• Type 27 depressed center profile for low-angle grinding and better surface access
• NorZon Plus abrasive formulation designed for consistent performance on metal
• 4 inch diameter by 1/8 inch thickness for light material removal and cutting
• 5/8 inch arbor bore fits standard angle grinder spindles
• Rated to 15,280 RPM maximum operating speed
• Sold individually with a case quantity of 25 units available

Compatibility

Designed for use on angle grinders with a 5/8 inch spindle arbor and a tool RPM rating at or above 15,280 RPM, intended for light grinding and cutting applications on metal.

Installation Notes

This wheel should be mounted by a qualified operator following the grinder manufacturer's guard and flange requirements. Always verify the grinder's no-load RPM does not exceed the wheel's maximum rated speed before mounting. Inspect the wheel for cracks or chips before each use and never use a damaged wheel. Personal protective equipment including a face shield, gloves, and hearing protection is required during operation.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Abrasive Line: NorZon Plus
• Application: Light Grinding and Cutting on Metal
• Diameter: 4 inches
• Thickness: 1/8 inch
• Arbor Bore: 5/8 inch
• Maximum Operating Speed: 15,280 RPM
• Unit of Measure: Each
• Minimum Order Quantity: 25
• Case Quantity: 25

Standard Information

• Brand: NORTON
• Manufacturer Part Number: 66252842005
